Blackout
Opaque fabrics can be paired with fascia, side channels and sill channels to reduce perimeter light and create a cleaner architectural finish.
Window treatments
Roller Shades
A precise, minimal system tailored to each opening, available in blackout, solar and light-filtering fabrics with manual or motorized operation.
Solar & light filtering
Screen fabrics manage glare, heat and UV exposure while preserving selected levels of view. Openness and color determine the final balance.
Motorization
Rechargeable battery, line-voltage and low-voltage systems are available with remotes, wall controls and compatible smart-home integration.
Roller Shades in detail

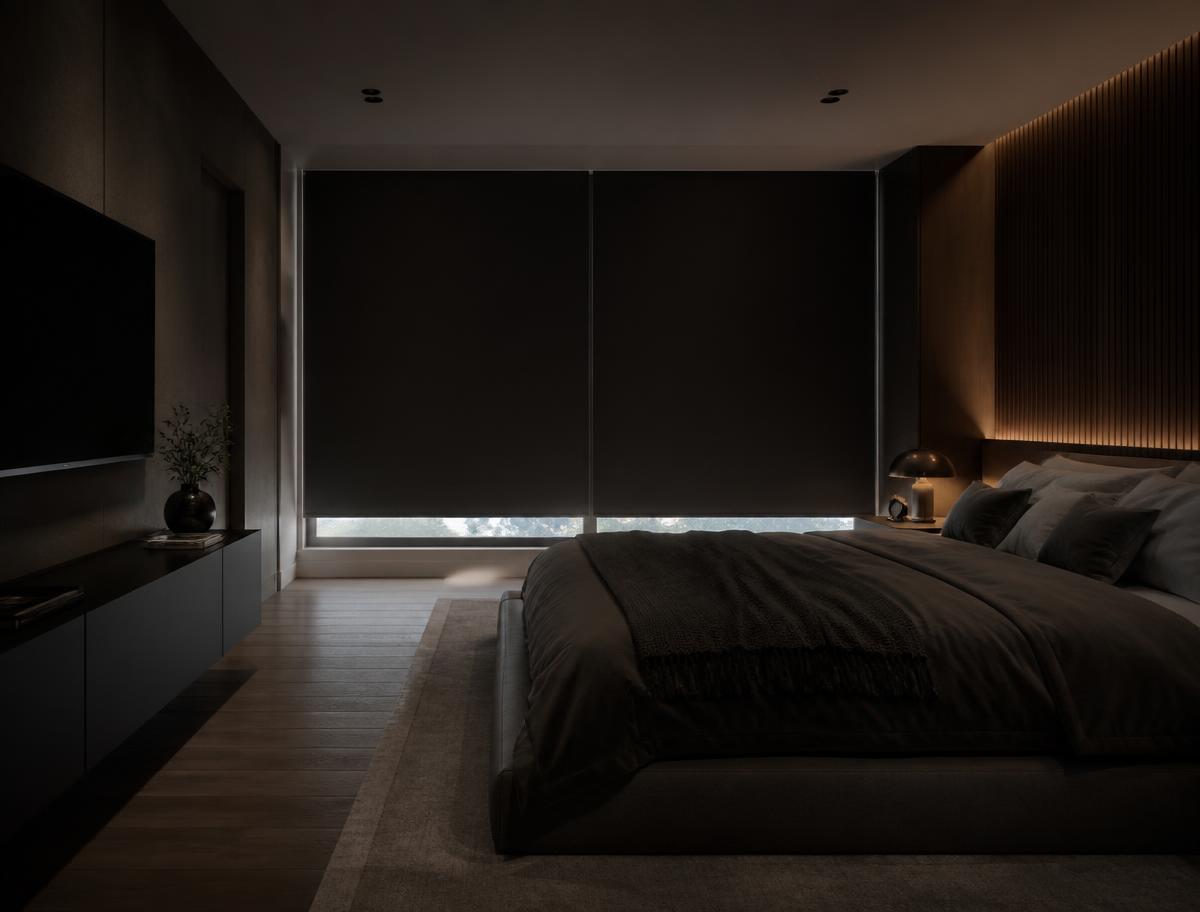

Blackout Shades
Total darkness for bedrooms, media rooms and guest suites, with side channels to seal light leaks.
- 100% opaque, thermal-lined fabrics
- Side and sill channels for full darkness
- Ideal for bedrooms and home theaters

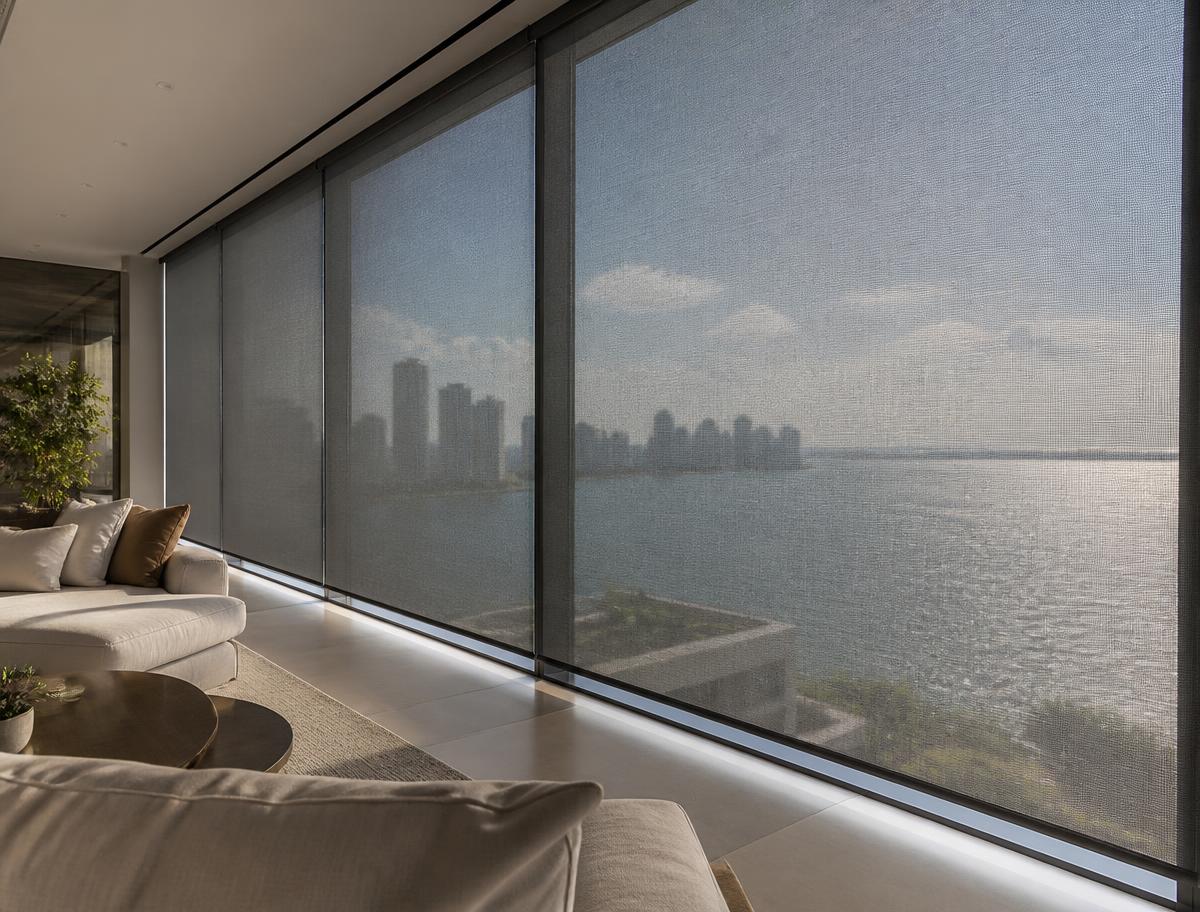

Solar & Light-Filtering Shades
Keep the view and cut the glare. Openness levels from 1% to 10% for Florida's strong coastal sun.
- UV protection for floors and furniture
- 1%, 3%, 5% and 10% openness
- Preserves the ocean and skyline view
Motorization
Quiet motors controlled from your phone, a remote or voice, with schedules that follow the sun.
- Rechargeable, wired or solar-powered motors
- App, remote and voice control
- Works with Alexa, Google Home, Control4 & Crestron
Blackout Shades in detail
True darkness is built from the details.
A blackout fabric on its own still lets light in around the edges. What makes a room completely dark is how the shade is engineered: the fascia on top, the side channels on the jambs and the sill channel at the bottom.

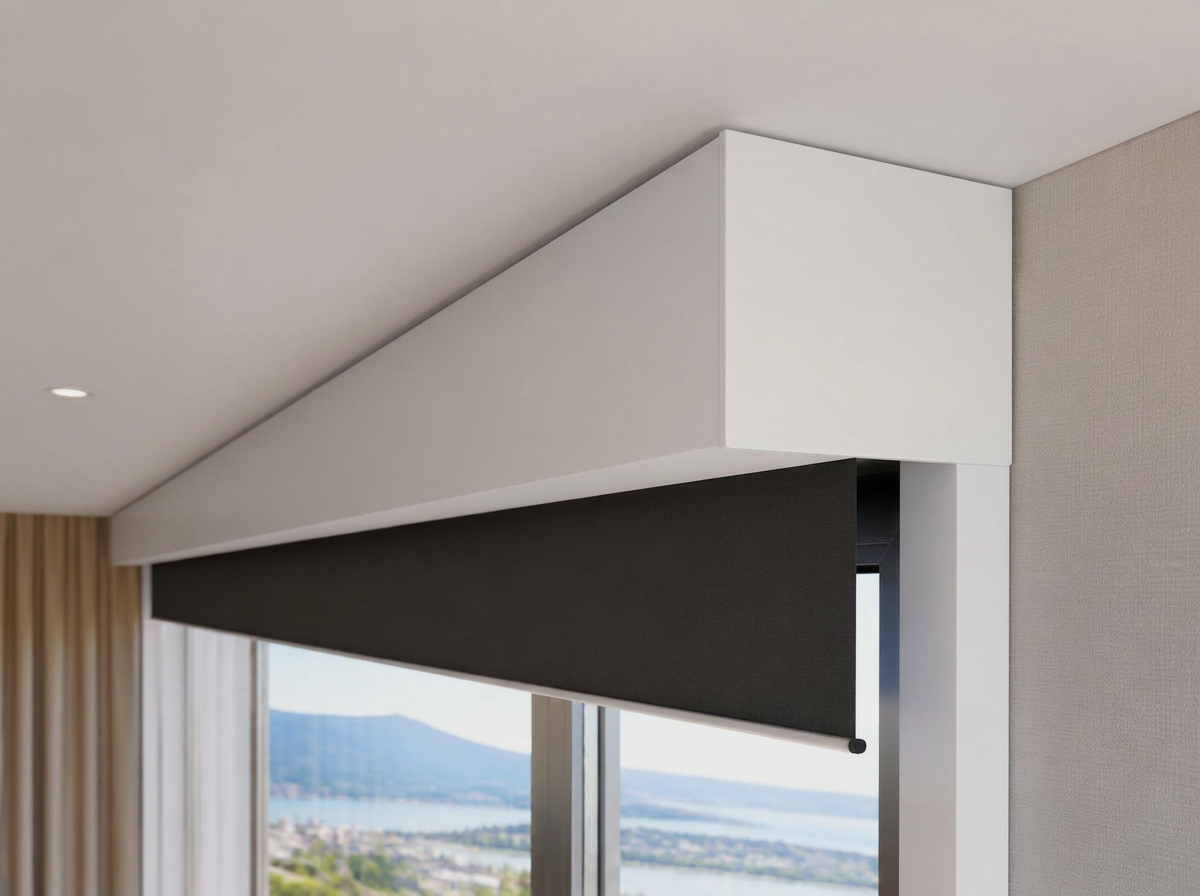

Fascia
A square aluminum front panel that hides the roll, brackets and motor for a clean architectural line. Available in 3", 4" and 5" profiles, powder-coated in white, black, bronze or anodized, or wrapped in the same shade fabric.
- Closes the top light gap above the fabric
- L-shape or closed cassette with back cover
- Ceiling, wall or pocket mounted
- Fabric-wrapped or metal finish to match the room

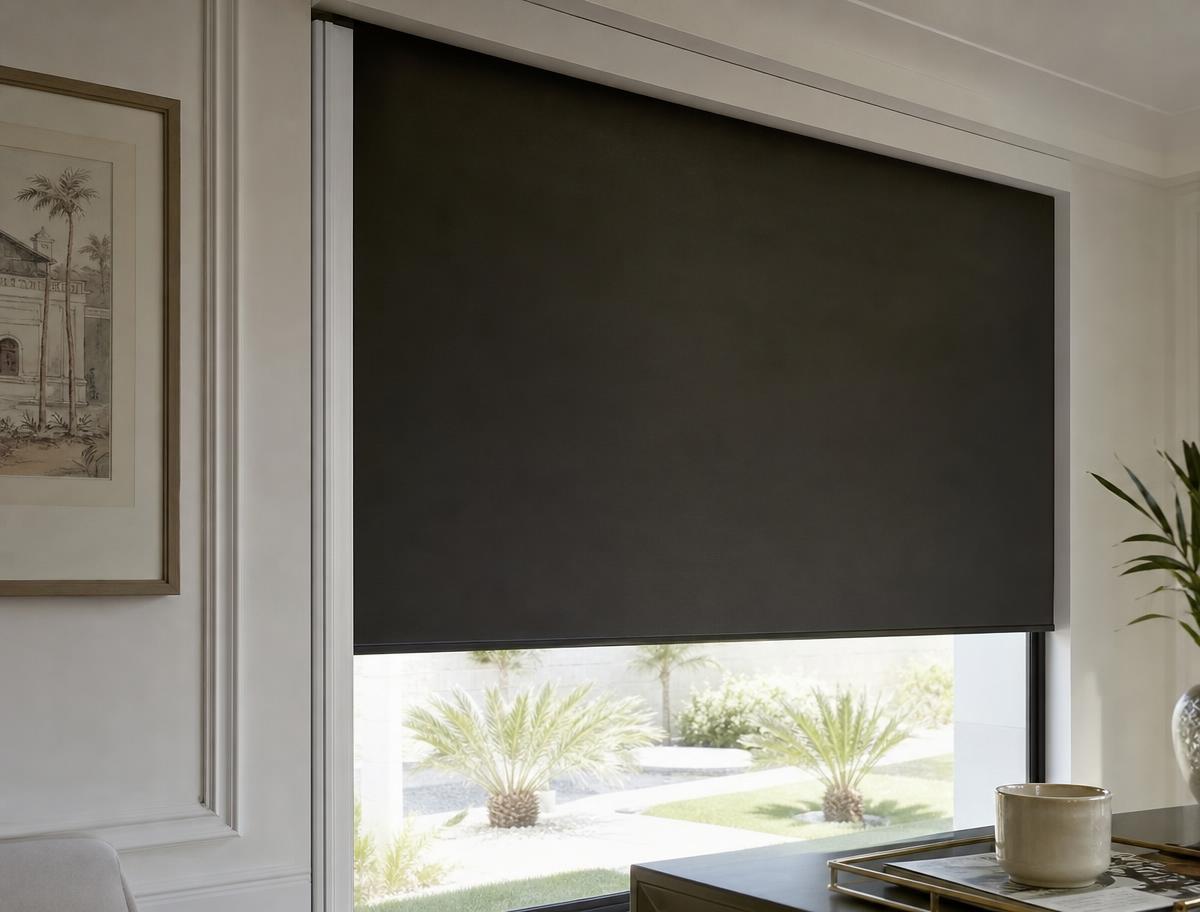

Side Channels
Aluminum U-channels installed on both jambs. The fabric edge runs inside the channel, blocking the light halo that every standard roller shade leaves along the sides — the single most important detail for true darkness.
- Recessed or surface-mounted profiles
- Felt or bristle inserts to silence movement
- Zip / cable-guided systems for large openings
- Also reduces heat transfer on west-facing glass

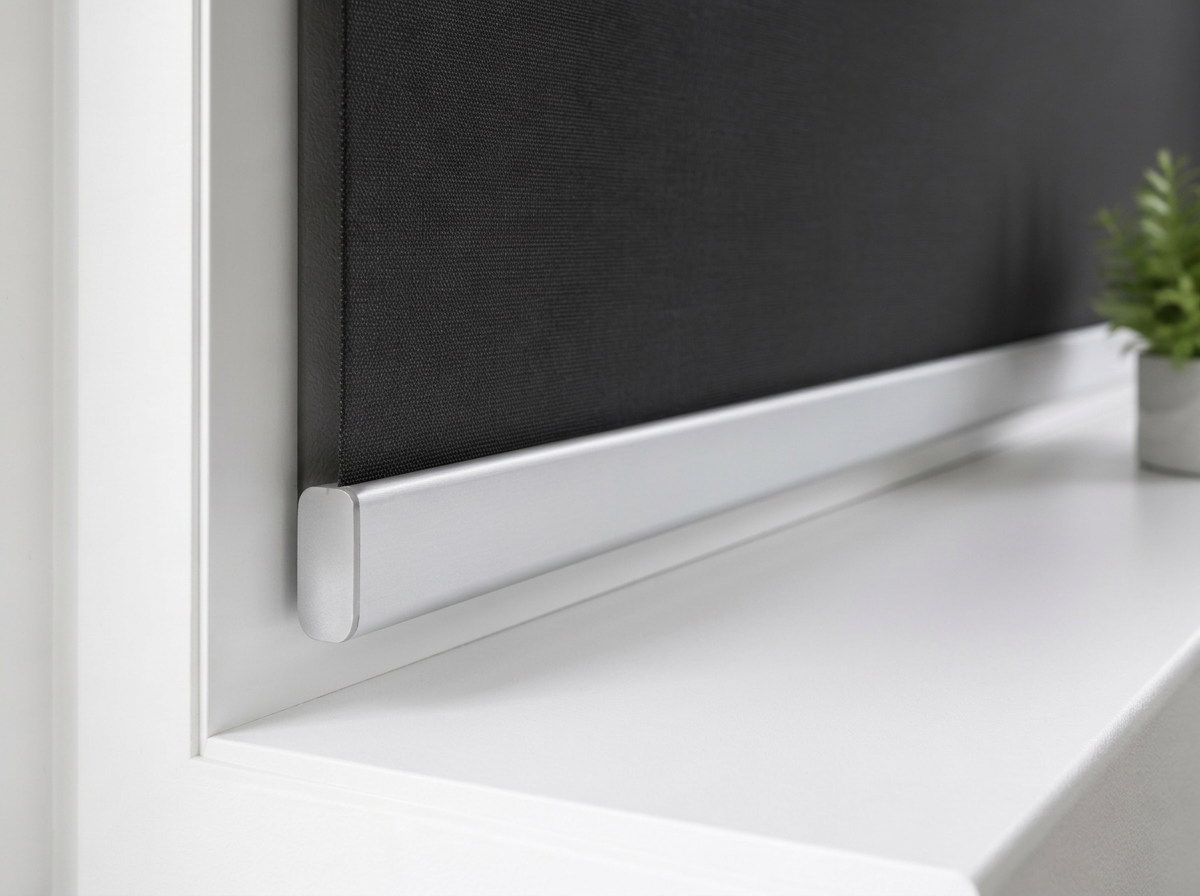

Sill Channel & Hembar
The bottom seal. A sill channel or light-stop bar catches the hembar when the shade closes, so no light spills onto the floor. The hembar can be internal (sewn into the fabric pocket) or external in aluminum.
- Sill channel or L light-stop at the bottom
- Internal or external hembar, color matched
- Level-cut hem for perfect closing line
- Magnetic option for hurricane-glass sills
Roll direction
Regular roll for a soft fabric line, or reverse roll to bring the fabric closer to the glass and shrink the side light gap.
Mounting
Inside mount for a recessed, architectural look, outside mount when you need to overlap the opening and kill light, or a ceiling pocket for a fully hidden shade.
Light gap control
Fascia on top, side channels on the jambs, sill channel at the bottom: the three together deliver 100% darkness on all four sides.
Dual shade systems
Two shades on one bracket — a solar shade by day and a blackout by night — under a single fascia.
Coupled & oversized shades
Wide openings are coupled on a shared tube or split into aligned panels so the hems and pattern stay perfectly in line.
Motorization ready
Every blackout system can be fitted with a rechargeable, wired or solar motor, hidden inside the fascia or pocket.
Blackout Fabrics by Vertilux
The complete Vertilux blackout collection.
Five blackout collections we specify every day, each one 100% opaque, dimensionally stable in Florida's humidity and easy to clean. Below you'll find the technical detail and the full color range of each one.
Daku Blackout
A smooth, matte blackout with a clean flat face — the essential choice for modern bedrooms and media rooms.
- Composition
- 100% PES
- Opacity
- 100% blackout · 100% UV blockage
- Weight
- 356 g/m² · 10.50 oz/yd²
- Thickness
- 0.61 mm · 0.024 in
- Roll width
- 2.65 m · 104 in
- Light fastness
- > 4 Xenotest grade
6 colors
0-002-11-01104
0-002-11-02104
0-002-11-03104
0-002-11-04104
0-002-11-05104
0-002-11-06104
Captiva Blackout
A wide-width blackout with a soft textile hand and warm neutrals — ideal for large oceanfront openings with no seams.
- Composition
- 100% PES
- Opacity
- 100% blackout · 100% UV blockage
- Weight
- 390 g/m² · 11.50 oz/yd²
- Thickness
- 0.58 mm · 0.023 in
- Roll width
- 3.00 m · 118 in
- Light fastness
- Class 5
9 colors
0-002-14-00100
0-002-14-00200
0-002-14-00300
0-002-14-00400
0-002-14-00500
0-002-14-00600
0-002-14-00700
0-002-14-00800
0-002-14-00900
Singular Blackout 2800
A refined, thin blackout with a uniform surface and a full tonal range from white to black. Greenguard Gold certified.
- Composition
- 100% PES
- Opacity
- 100% blackout · 100% UV blockage
- Weight
- 385 g/m² · 11.3 oz/yd²
- Thickness
- 0.40 mm · 0.016 in
- Roll width
- 2.80 m · 110 in
- Certifications
- Greenguard Gold · 5-year warranty
9 colors
0-002-62-01210
0-002-62-02210
0-002-62-03210
0-002-62-04210
0-002-62-06210
0-002-62-08210
0-002-62-09210
0-002-62-10210
0-002-62-11210
Stucco Blackout
A textured, plaster-like face with a foamed backing — natural character by day, total darkness when closed.
- Composition
- 100% PES base cloth, foamed backing
- Opacity
- 100% blackout · 100% UV blockage
- Weight
- 360 g/m² · 10.62 oz/yd²
- Thickness
- 0.48 mm · 0.019 in
- Roll width
- 2.80 m · 110 in
- Certifications
- Greenguard Gold · Oeko-Tex 100
6 colors
0-002-96-01110
0-002-96-02110
0-002-96-03110
0-002-96-04110
0-002-96-05110
0-002-96-06110
Sunset Blackout
The heaviest of the group, with body and a beautiful fall. Available in extra-wide 118 in rolls for floor-to-ceiling glass.
- Composition
- 100% PES
- Opacity
- 100% blackout · 100% UV blockage
- Weight
- 400 g/m² · 11.8 oz/yd²
- Thickness
- 0.50 mm · 0.020 in
- Roll width
- 3.00 m · 118 in (select colors also 98 in)
- Light fastness
- ≥ 5.0
8 colors
0-002-17-01118
0-002-17-02118
0-002-17-03118
0-002-17-04118
0-002-17-05118
0-002-17-06118
0-002-17-07118
0-002-17-08118
Screen colors are a reference only. Come by the showroom to see and touch the real samples in your own light before you decide.
Solar Screen Fabrics by Vertilux
The full VX Screen collection, openness by openness.
Solar screens are measured by their openness factor — the percentage of open space between the yarns. The lower the number, the tighter the weave: more glare and UV control, less view. The higher the number, the more you see through, and the more sun you let in.
What each percentage really means
0.5% – 1%
Blocks approx. 99% of UV
The tightest weaves. Glare is almost gone and furniture and art are fully protected; the outward view becomes a soft silhouette. Perfect for west-facing glass, media rooms and offices with screens.
3%
Blocks approx. 97% of UV
The best balance and our most specified openness. Strong glare and heat control while the horizon, the water and the landscape stay clearly readable.
5%
Blocks approx. 95% of UV
A brighter room with an open, natural view. Comfortable for living rooms and bedrooms that are not hit by direct afternoon sun.
8%
Blocks approx. 92% of UV
A textured, decorative weave with an open view. Chosen as much for the look of the fabric as for the sun control.
10%
Blocks approx. 90% of UV
The view stays practically intact and the room keeps its brightness. Cuts heat and softens light without ever feeling closed in.
20%
Blocks approx. 80% of UV
The most open screen. Insect-screen transparency with a light veil of sun protection — ideal for covered terraces and north-facing glass.
Color matters as much as openness: a white screen bounces more heat away but glares more and blurs the view, while a charcoal or bronze screen absorbs the light and gives the sharpest, most contrasted view out. In Florida we often pair a dark screen by day with a blackout by night on the same bracket.
VX Screen 3500-0.5%
0.5% opennessThe densest screen we specify. A heavy, tight weave that kills glare almost completely while keeping a faint outward view — made for west-facing walls of glass and media rooms that still want daylight.
- Composition
- 30% PES + 70% PVC
- Weight
- 500 g/m² (±5%) | 14.75 oz/yd² (±5%)
- Thickness
- 0.65 mm (±5%) | 0.026 in (±5%)
- Roll Width
- 250 cm, 300 cm | 98 in, 118 in
- Openness Factor
- Approx. 1%
- UV Blockage
- Approx. 99%
- Color Fastness
- Class 4.5
- Flame Retardant
- NFPA 701 - Pass
- Certification
- OEKO-TEX 100 certified
4 colors
0-004-68-04198
0-004-68-00298
0-004-68-00398
0-004-68-02798

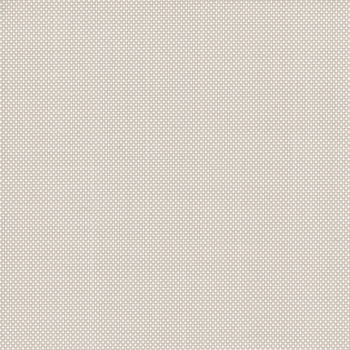

VX Screen 3000 - 1%
1% opennessThe workhorse 1% of the 3000 family: nine colors, wide rolls and maximum glare control with a crisp, tight weave.
- Composition
- 75% PVC + 25% PES
- Weight
- 470 g/m² (± 5%) | 13.86 oz/yd² (± 5%)
- Thickness
- 0.60 mm (± 5%) | 0.024 in (± 5%)
- Roll Width
- 2.5 m & 3.0 m | 98 in & 118 in
- Openness Factor
- Approx. 1%
- UV Blockage
- Approx. 99%
- Light Fastness
- Class 5
- Flame Retardant
- NFPA 701 - Pass
- Certification
- OEKO-TEX 100 certified
9 colors
0-004-86-00018
0-004-86-00218
0-004-86-22018
0-004-86-00318
0-004-86-07018
0-004-86-02718
0-004-86-20018
0-004-86-02518
0-004-86-01918

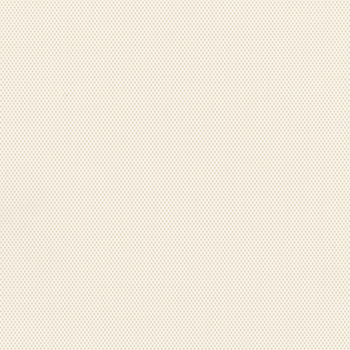

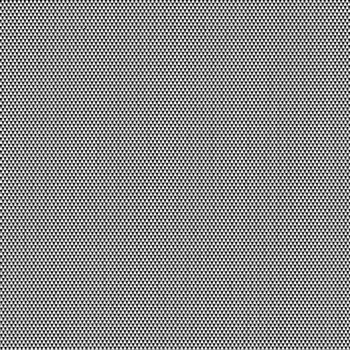

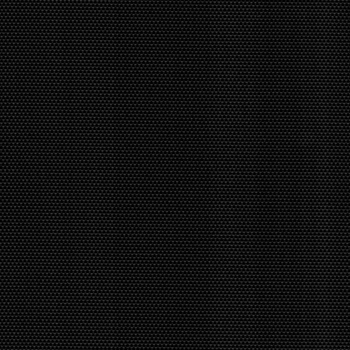

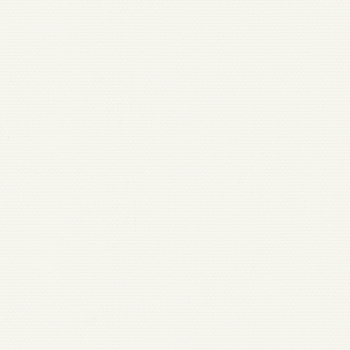

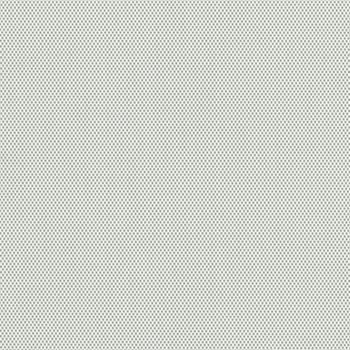

VX Screen 3101-1%
1% opennessA finer-yarn version of the 1%, with a softer textile look and a deeper color range for living rooms and bedrooms.
- Composition
- 35% PES + 65% PVC
- Weight
- 480 g/m² (±5%) | 14.15 oz/yd² (±5%)
- Thickness
- 0.65 mm (±5%) | 0.025 in (±5%)
- Roll Width
- All colors: 2.5 m & 3.0 m | 98 in & 118 in.
- Openness Factor
- Approx. 1%
- UV Blockage
- Approx. 99%
- Color Fastness
- Class 5
- Flame Retardant
- NFPA 701 - Pass
- Certification
- OEKO-TEX 100 certified
7 colors
0-004-36-00298
0-004-36-00398
0-004-36-00798
0-004-36-00198
0-004-36-00698
0-004-36-00898
0-004-36-07098
VX Screen 5000-1%
1% opennessThe heaviest screen in the collection — a thick, substantial hand that hangs beautifully flat on very tall windows.
- Composition
- 30% PES + 70% PVC
- Weight
- 750 g/m² (±5%) | 22.12 oz/yd²
- Thickness
- 1.08 mm (±5%) | 0.043 in
- Roll Width
- 250 cm | 98 in
- Openness Factor
- Approx. 1%
- UV Blockage
- Approx. 99%
- Flame Retardant
- NFPA 701 - Pass
- Certification
- OEKO-TEX 100 certified
5 colors
0-004-64-00298
0-004-64-22098
0-004-64-02198
0-004-64-00698
0-004-64-00898

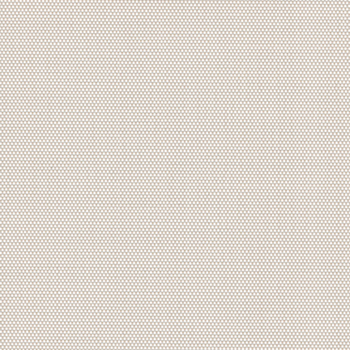

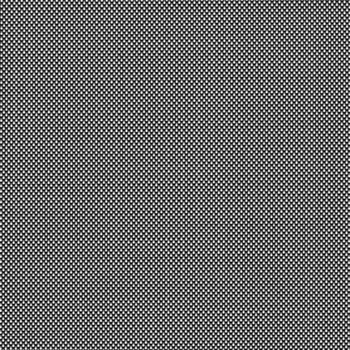

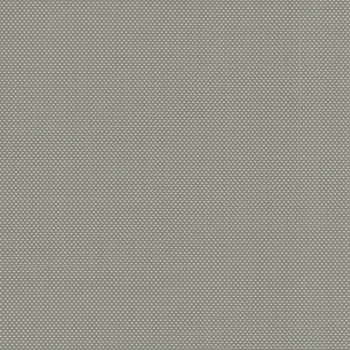

VX Screen 3000 - 3%
3% opennessThe most balanced screen of the family: real glare control with a clearly readable view out. Our default for oceanfront living rooms.
- Composition
- 75% PVC + 25% PES
- Weight
- 425 g/m² (± 5%) | 12.53 oz/yd² (± 5%)
- Thickness
- 0.55 mm (± 5%) | 0.022 in (± 5%)
- Roll Width
- 250 cm, 300 cm | 98 in, 118 in
- Openness Factor
- Approx. 3%
- UV Blockage
- Approx. 97%
- Flame Retardant
- NFPA 701 - Pass
- Certification
- OEKO-TEX 100 certified
9 colors
0-004-87-00018
0-004-87-00218
0-004-87-22018
0-004-87-00318
0-004-87-07018
0-004-87-02718
0-004-87-20018
0-004-87-02518
0-004-87-01918

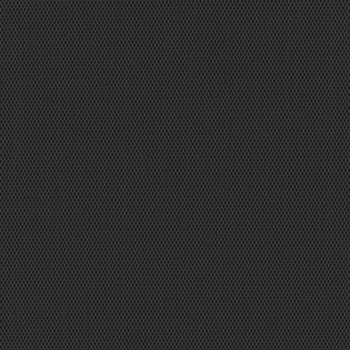

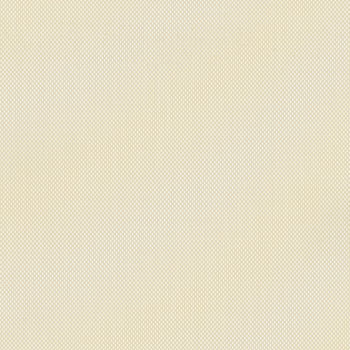

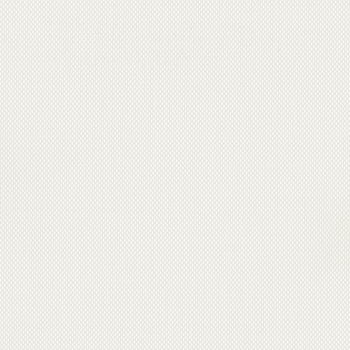

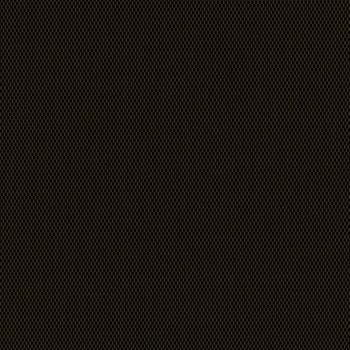

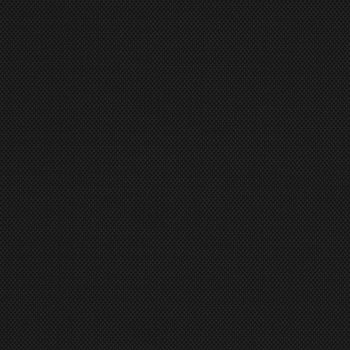

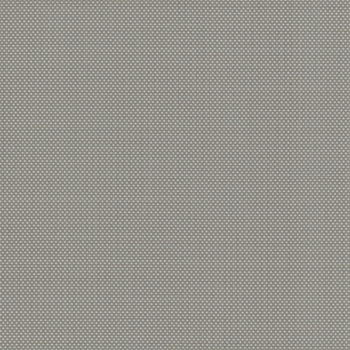

VX Screen 3103-3%
3% opennessA 3% woven with a 0.34 mm yarn for a smooth, almost linen-like face — elegant in bedrooms and offices.
- Composition
- 35% PES + 65% PVC
- Weight
- 450 g/m² (±5%) | 13.27 oz/yd² (±5%)
- Thickness
- 0.60 mm (±5%) | 0.023 in (±5%)
- Roll Width
- All colors: 2.5 m & 3.0 m | 98 in & 118 in.
- Openness Factor
- Approx. 3%
- UV Blockage
- Approx. 97%
- Color Fastness
- Class 5
- Flame Retardant
- NFPA 701 - Pass
- Certification
- OEKO-TEX 100 certified
7 colors
0-004-32-00298
0-004-32-00398
0-004-32-00798
0-004-32-00198
0-004-32-07098
0-004-32-00698
0-004-32-00898
VX Screen 8200 - 3%
3% opennessA refined 3% with a slightly thicker weave and a clean, contemporary white palette.
- Composition
- 70% PVC + 30% PES
- Weight
- 440 g/m² (± 5%) | 12.98 oz/yd² (± 5%)
- Thickness
- 0.70 mm (± 5%) | 0.027 in (± 5%)
- Roll Width
- 2.5, 3.0 m | 98, 118 in
- Openness Factor
- Approx. 3%
- UV Blockage
- Approx. 97%
- Color Fastness
- Class 4.5
- Flame Retardant
- NFPA 701 - Pass
- Certification
- OEKO-TEX 100 certified
4 colors
0-004-83-00298
0-004-83-82698
0-004-83-02798
0-004-83-23098

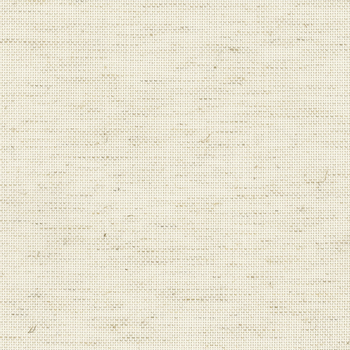

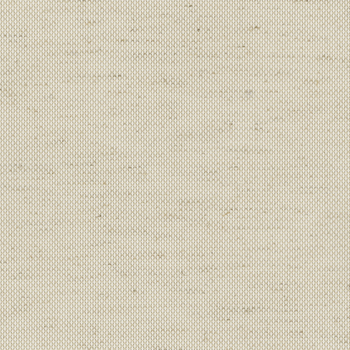

VX Screen Nature 3%
3% opennessA natural-look 3% in warm linen tones, for interiors built on wood, stone and organic textures.
2 colors
0-004-53-00398
0-004-53-00498
VX Screen 2900-5%
5% opennessA classic 5% with one of the widest color ranges — from Linen and Taupe to Chestnut and Ebony Pearl.
- Composition
- 30% PES + 70% PVC
- Weight
- 395 g/m² (±5%) | 11.65 oz/yd² (±5%)
- Thickness
- 0.57 mm (±5%) | 0.022 in (±5%)
- Roll Width
- All colors: 2.5 m & 3.0 m | 98 in & 118 in. · White, White Linen, White Pearl: also available in 1.6 m & 2.0 m | 63 in & 78 in
- Openness Factor
- Approx. 5%
- UV Blockage
- Approx. 95%
- Color Fastness
- Class 4.5
- Flame Retardant
- NFPA 701 - Pass
- Certification
- OEKO-TEX 100 certified
9 colors
0-004-52-00398
0-004-52-07098
0-004-52-02598
0-004-52-02798
0-004-52-00298
0-004-52-22098
0-004-52-01998
0-004-52-20098
0-004-52-18398

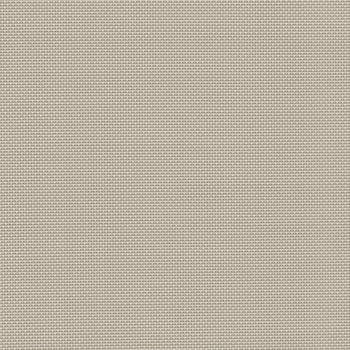

VX Screen 3000 - 5%
5% opennessThe lightest 5% of the 3000 family: bright, airy and easy to motorize on wide spans.
- Composition
- 75% PVC + 25% PES
- Weight
- 400 g/m² (± 5%) | 11.80 oz/yd² (± 5%)
- Thickness
- 0.54 mm (± 5%) | 0.021 in (± 5%)
- Roll Width
- 2.5, 3.0 m | 98, 118 in
- Openness Factor
- Approx. 5%
- UV Blockage
- Approx. 95%
- Flame Retardant
- NFPA 701 - Pass
- Certification
- OEKO-TEX 100 certified
9 colors
0-004-62-00018
0-004-62-00218
0-004-62-22018
0-004-62-00318
0-004-62-07018
0-004-62-02718
0-004-62-20018
0-004-62-02518
0-004-62-01918
VX Screen 3105-5%
5% opennessA fine-yarn 5% with charcoal and bronze tones — the choice when the shade itself should read as a design element.
- Composition
- 35% PES + 65% PVC
- Weight
- 454 g/m² (±5%) | 13.39 oz/yd² (±5%)
- Thickness
- 0.55 mm (±5%) | 0.022 in (±5%)
- Roll Width
- All colors: 2.5 m & 3.0 m | 98 in & 118 in.
- Openness Factor
- Approx. 5%
- UV Blockage
- Approx. 95%
- Color Fastness
- Class 5
- Flame Retardant
- NFPA 701 - Pass
- Certification
- OEKO-TEX 100 certified
8 colors

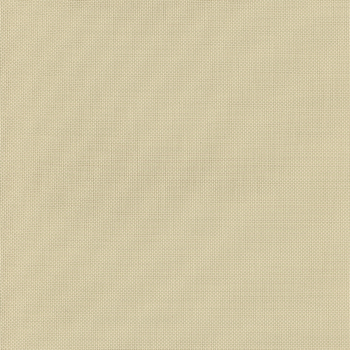

0-004-33-00498

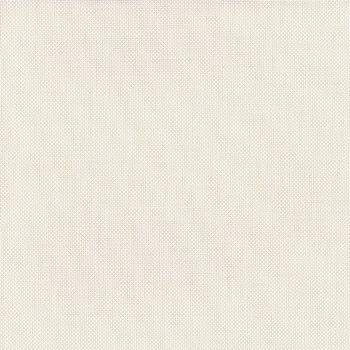

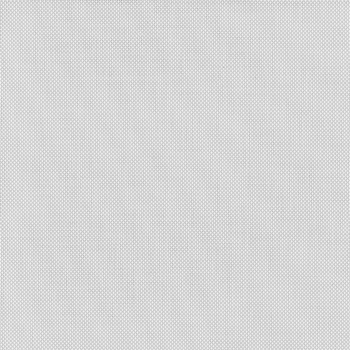

0-004-33-00318

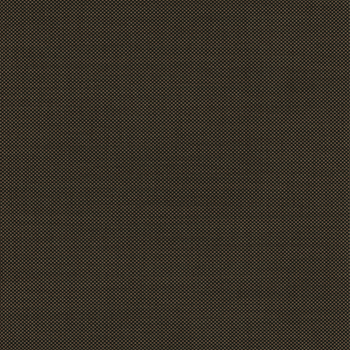

0-004-33-00718
0-004-33-00118
0-004-33-00218
0-004-33-00518
0-004-33-00618

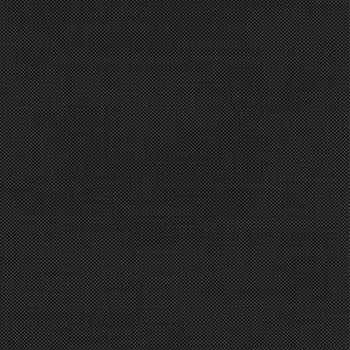

0-004-33-00818
VX Screen 4000 - 5%
5% opennessA heavier, more textured 5% with a beautiful pearl-linen palette and excellent dimensional stability.
- Composition
- 75% PVC + 25% PES
- Weight
- 535 g/m² (± 5%) | 15.78 oz/yd² (± 5%)
- Thickness
- 0.72 mm (± 5%) | 0.028 in (± 5%)
- Roll Width
- 2.5, 3.0 m | 98, 118 in
- Openness Factor
- Approx. 5%
- UV Blockage
- Approx. 95%
- Flame Retardant
- NFPA 701 - Pass
8 colors

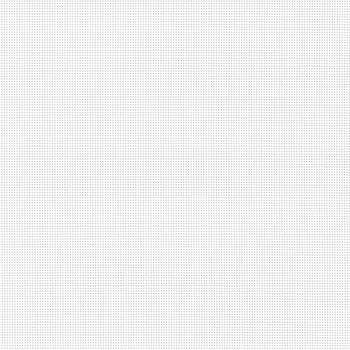

0-004-60-02118
0-004-60-22118
0-004-60-03118
0-004-60-72018
0-004-60-27118
0-004-60-17018
0-004-60-02518
0-004-60-19118
VX Screen Nature 5%
5% opennessThe natural-fiber look at 5% openness — soft linen tones with an open, breezy view.
2 colors
0-004-55-00398

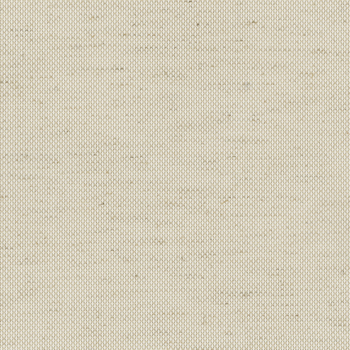

0-004-55-00498
VX Screen Stucco - 8%
8% opennessA textured 8% with a stucco-like surface. Warm, tactile and forgiving with natural interiors.
- Composition
- 70% PVC + 30% PES
- Weight
- 420 g/m² (±5%) | 12.39 oz/yd²
- Thickness
- 0.96 mm (± 5%) | 0.040 in (± 5%)
- Roll Width
- 2.5 m | 98 in
- Openness Factor
- Approx. 8%
- UV Blockage
- Approx. 92%
- Flame Retardant
- NFPA 701 - Pass
6 colors
0-004-56-00198
0-004-56-00298
0-004-56-00698
0-004-56-00398
0-004-56-00498
0-004-56-00598
VX Screen 3000 - 10%
10% opennessAn open 10% that keeps the view almost intact while cutting heat and hard glare — ideal for terraces and shaded exposures.
- Composition
- 75% PVC + 25% PES
- Weight
- 345 g/m² (± 5%) | 10.17 oz/yd² (± 5%)
- Thickness
- 0.51 mm (± 5%) | 0.020 in (± 5%)
- Roll Width
- 2.5, 3.0 m | 98, 118 in
- Openness Factor
- Approx. 10%
- UV Blockage
- Approx. 90%
- Flame Retardant
- NFPA 701 - Pass
- Certification
- OEKO-TEX 100 certified
8 colors
0-004-61-02118
0-004-61-22118
0-004-61-00318
0-004-61-07018
0-004-61-02718

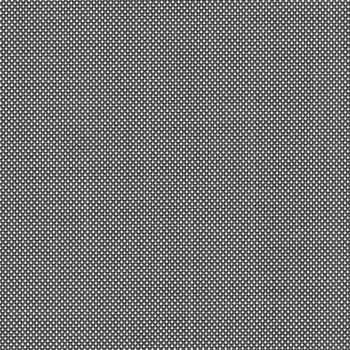

0-004-61-20018
0-004-61-25118
0-004-61-19118
VX Screen 4000-10%
10% opennessA heavier 10% with more body, for large openings that need an open view and a substantial hand.
- Composition
- 30% PES + 70% PVC
- Weight
- 480 g/m² (±5%) | 14.16 oz/yd² (±5%)
- Thickness
- 0.65 mm (±5%) | 0.026 in (±5%)
- Roll Width
- 250 cm, 300 cm | 98 in, 118 in
- Openness Factor
- Approx. 10%
- UV Blockage
- Approx. 90%
- Color Fastness
- Class 4.5
- Flame Retardant
- NFPA 701 - Pass
- Certification
- OEKO-TEX 100 certified
4 colors
0-004-63-00298
0-004-63-22098
0-004-63-02798
0-004-63-01998
VX Screen 320-20%
20% opennessThe most open screen: 20% openness, an almost unobstructed view and light heat control. Best on covered balconies and north-facing glass.
- Composition
- 30% PES + 70% PVC
- Weight
- 280 g/m (±5%) | 8.26 oz/yd (±5%)
- Thickness
- 0.79 mm (±5%) | 0.031 in (±5%)
- Roll Width
- 250 cm | 98 in
- Openness Factor
- Approx. 20%
- UV Blockage
- Approx. 80%
- Light Fastness
- AATCC 16-2003 · CLASS 4.5 - After 80 AFU
- Flame Retardant
- NFPA 701 - Pass
6 colors
0-004-66-00298
0-004-66-22098
0-004-66-02198
0-004-66-00198
0-004-66-00398
0-004-66-01998
VX Screen Dimity FR
Decorative screenA decorative screen with a woven pattern — texture and personality on top of solar performance.
- Composition
- 71% PVC + 29% PES
- Weight
- 544 g/m2 (± 5%) | 16.04 oz/yd2 (± 5%)
- Thickness
- 0.87 mm (± 5%) | 0.034 in (± 5%)
- Roll Width
- 2.5 m | 98 in
- Flame Retardant
- NFPA 701 - Pass
5 colors
0-004-88-00198

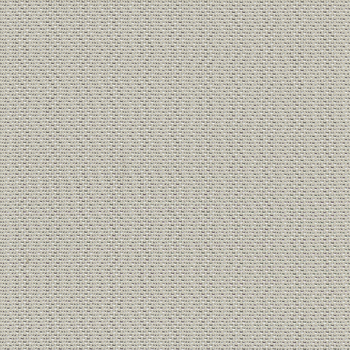

0-004-88-00598
0-004-88-00298
0-004-88-00398
0-004-88-00498
VX Screen Otomi FR
Decorative screenA decorative flame-retardant screen with a distinctive open weave and an artisanal, hand-loomed character.
- Composition
- 52% PVC + 48% PES
- Weight
- 424 g/m2 (± 5%) | 12.50 oz/yd2 (± 5%)
- Thickness
- 0.70 mm (± 5%) | 0.027 in (± 5%)
- Roll Width
- 2.5 m | 98 in
- Flame Retardant
- NFPA 701 - Pass
4 colors

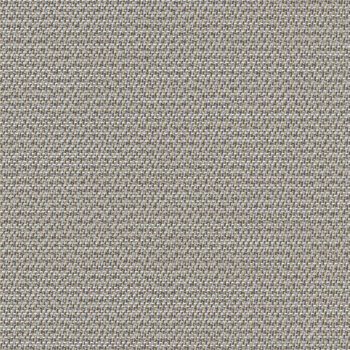

0-004-89-00398

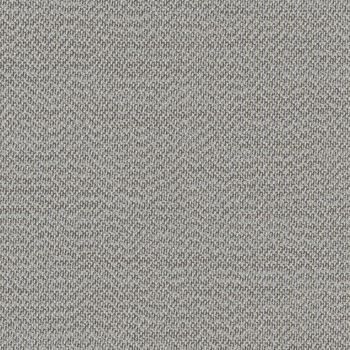

0-004-89-00498

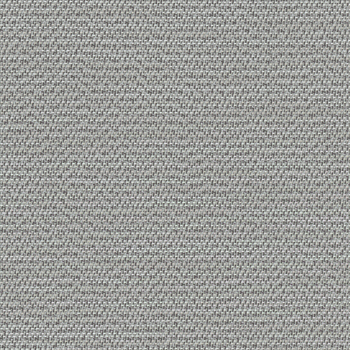

0-004-89-00198
0-004-89-00298
Screen colors are a reference only. Come by the showroom to hold the sample against your own window and see exactly how much view each openness keeps.
