Ripple fold
Uniform S-shaped waves create a modern architectural rhythm and compact stack, ideal for wide glass and continuous ceiling tracks.
Window treatments
Custom Drapes
Every panel is measured, cut, sewn and installed for its specific opening, with carefully planned fullness, stack-back, hem and ceiling-track placement.
Pinch pleat
Structured pleats create a tailored, more traditional heading with a fuller decorative presence in formal rooms and bedrooms.
Fabrics & motorization
Choose sheer, semi-sheer or blackout textiles, then add motorized tracks for quiet movement, grouped controls and compatible automation.
Drapes in detail
Two ways to hang a drape — and the fabric decides everything else.
Every drape we make is cut, sewn and installed for one specific window: measured to the ceiling, weighted at the hem and hung so the folds break cleanly on the floor. The first decision is the style — ripple fold or pinch pleat. The second is the fabric: sheer, semi-sheer or blackout.

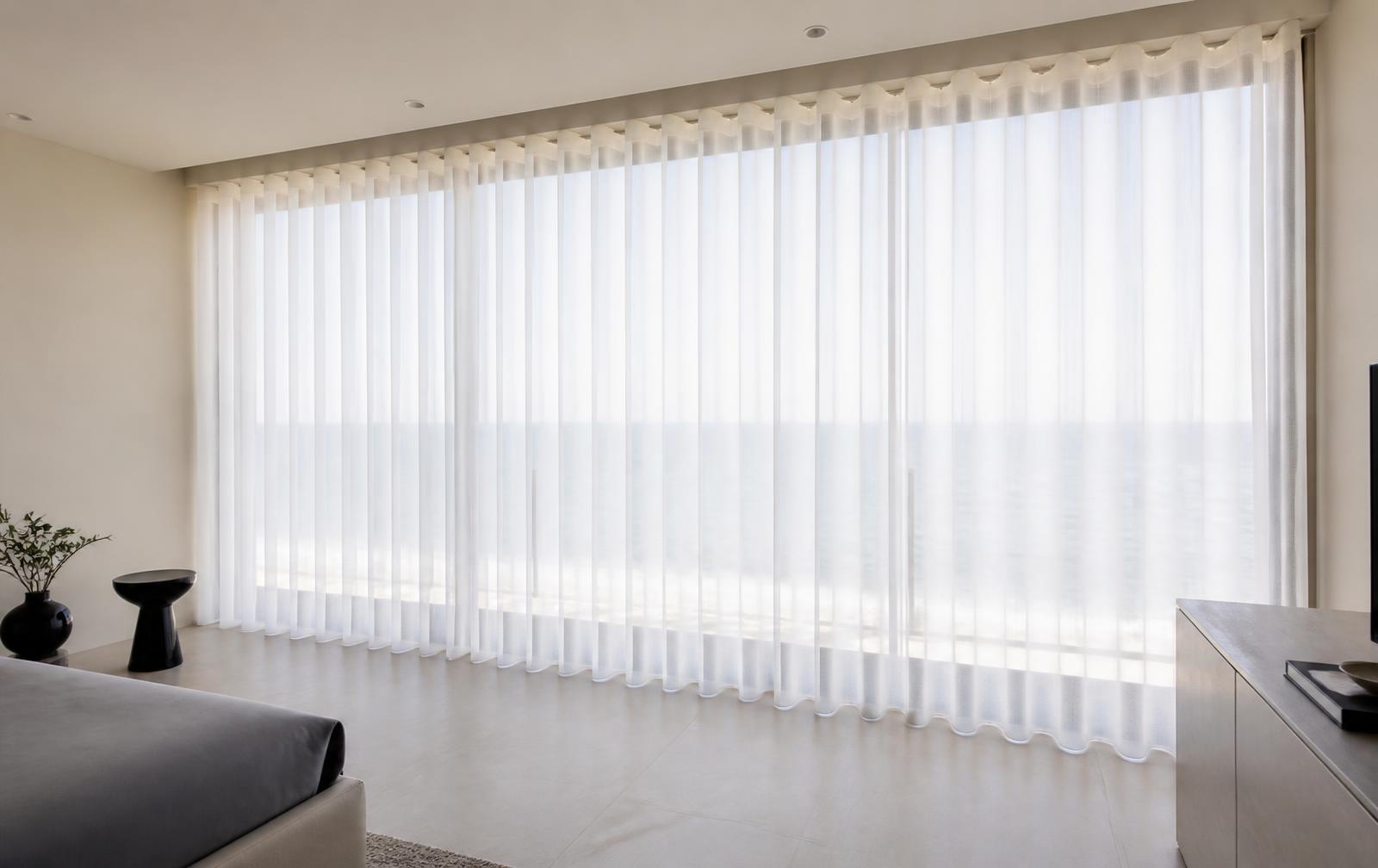

Style 01
Ripple Fold
Panels ride on a track with carriers spaced at a fixed ratio, so the fabric falls in one continuous, even S-wave from ceiling to floor. No pleats, no hardware on show — the drape reads as a soft architectural wall of fabric. This is the style we use most in modern Florida condos and new construction.
- Ceiling-recessed pocket, surface track or wall bracket
- Fullness ratio 60%, 80% or 100% — more ratio, deeper wave
- Single panel, center split, or stacked left/right
- Cleanest style to motorize: the same track carries the motor
- Sheer and blackout can run on a dual track, one in front of the other
Style 02

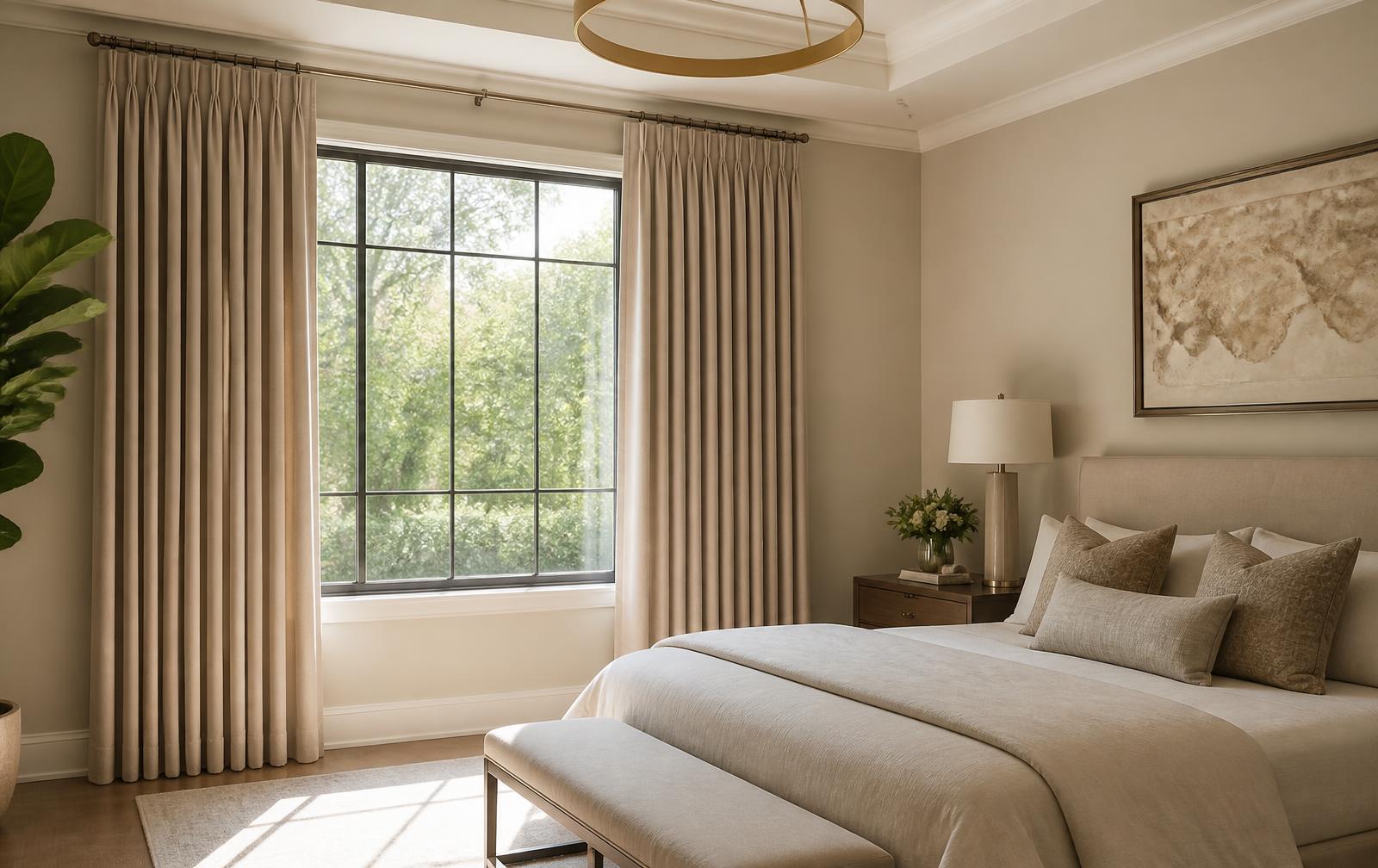

Pinch Pleat
The classic tailored heading: the fabric is gathered by hand into pinches — two, three or four folds — sewn at the top and hung from rings on a decorative rod or from a track. It carries more presence and formality than ripple fold, and it flatters heavier fabrics, silks and textured linens.
- Double, triple or French pleat headings
- Decorative rods in brass, bronze, matte black or nickel, or hidden track
- Deeper stack back when open — plan wall space beside the glass
- Ideal with dim out and blackout fabrics for a rich, layered bedroom
- Can also be motorized on a concealed track
Sheer or blackout — or both
A ripple fold drape can be made in a sheer fabric for a light, transparent veil, or in a blackout fabric for a solid, room-darkening panel. In bedrooms and oceanfront living rooms we normally install both on a dual track: the sheer in front of the glass for the day, the blackout behind or in front of it for the night, each moving independently and both motorized if you want.
Sheer Fabrics
Light, air and a view that never closes.
Sheers filter the sun into a soft glow, hide the hard edges of the glass and keep the room feeling open. They give daytime privacy from a distance but not at night, which is why we usually pair them with a blackout layer on a second track.

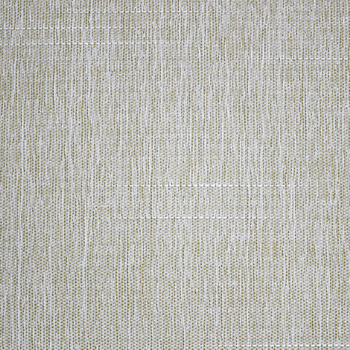

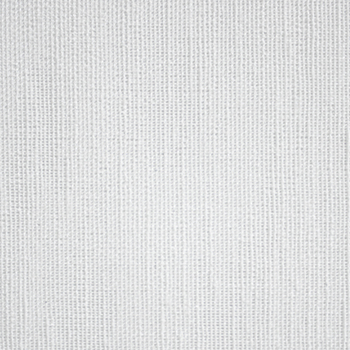

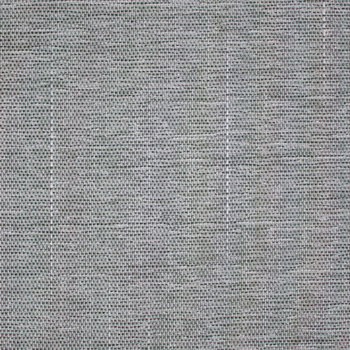

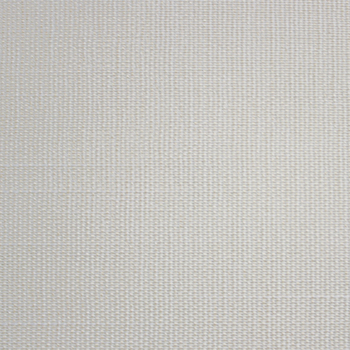

Dining
- Composition
- WHITE: 100% PES · OTHER COLORS: 100% PES
- Weight
- WHITE: 140 g/m2 ± 10% | 4.12 oz/yd2 ± 10% · OTHER COLORS: 110 g/m2 ± 10% | 3.24 oz/yd2 ± 10%
- Roll Width
- WHITE: 3.2 m ± 5% | 125.98 in ± 5% · OTHER COLORS: 3.2 m ± 5% | 125.98 in ± 5%
- Light Fastness
- WHITE: Class 4-5 · OTHER COLORS: Class 5-6

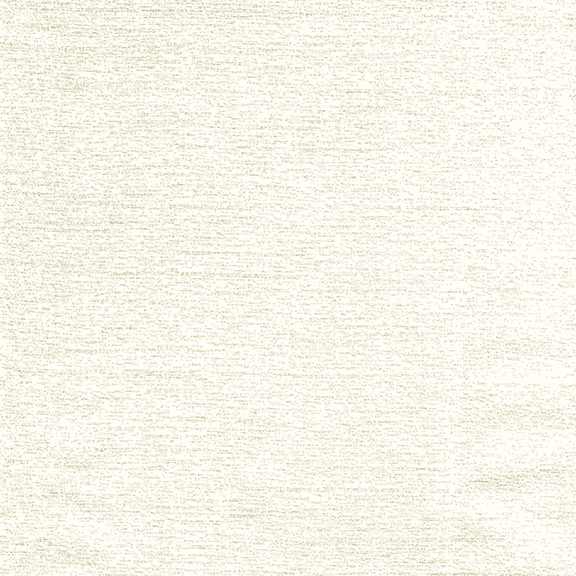

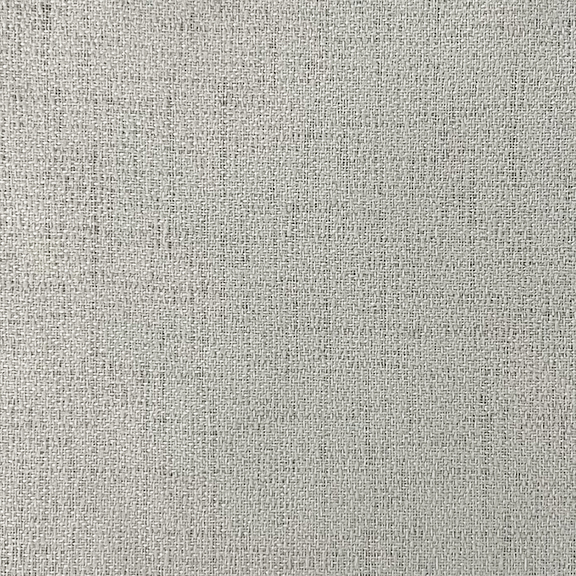

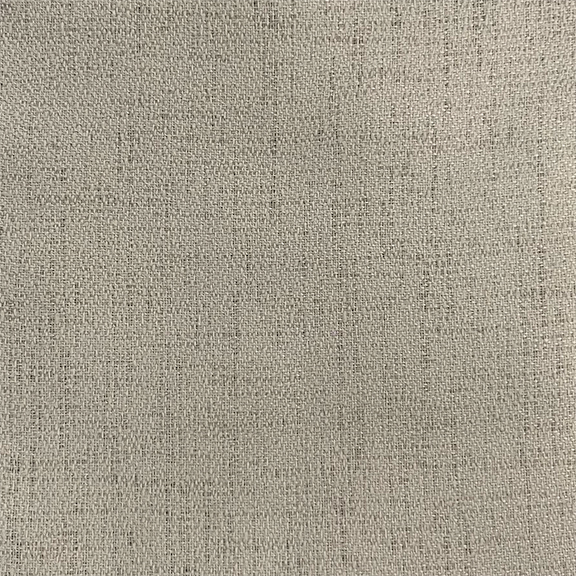

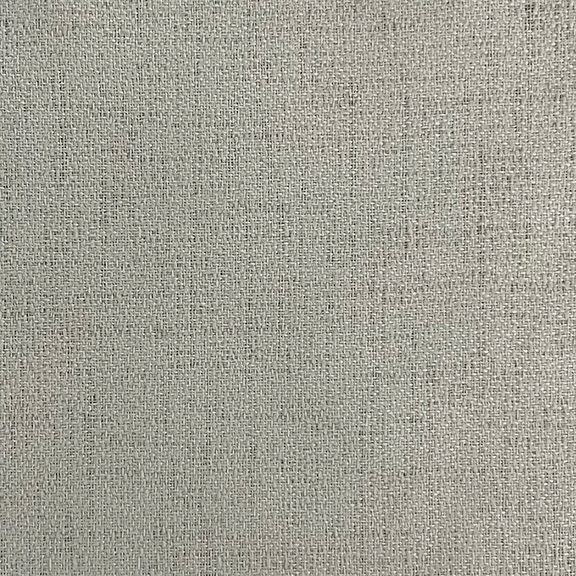

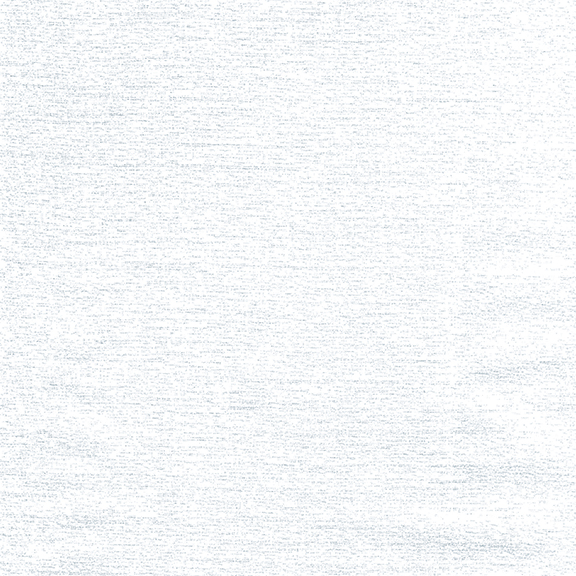

Dotty FR
- Composition
- 100% PES
- Weight
- 100 g/m² ± 5% | 2.94 oz/yd² ± 5%
- Roll Width
- 3.05 m ± 5% | 120 in ± 5%
- Roll Length
- 50 m ± 10% | 55 yd ± 10%
- Light Fastness
- 4-5 Grayscale
- Flame Retardant **
- NFPA 701
5 colors
0-007-30-00103
0-007-30-01700
0-007-30-11003
0-007-30-12145
0-007-30-12285

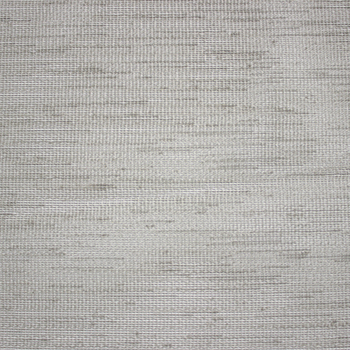

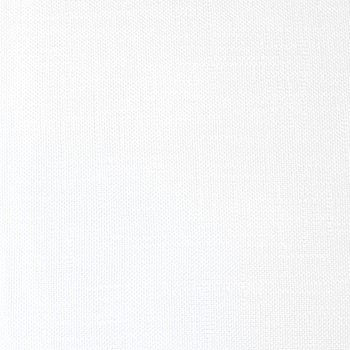

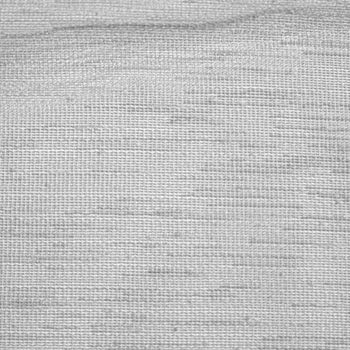

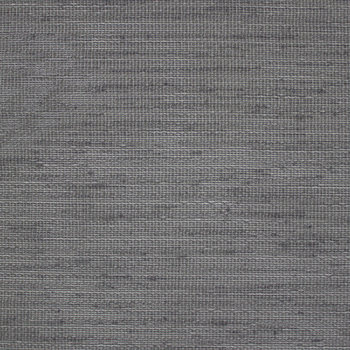

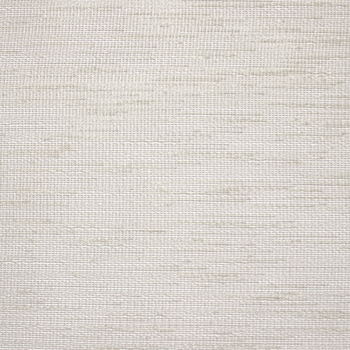

Freefall FR
- Composition
- 100% PES
- Weight
- 87 g/m² ± 5% | 2.56 oz/yd² ± 5%
- Roll Width
- 3.2 m ± 5% | 126 in ± 5%
- Light Fastness
- Class 6
- Flame Retardant
- NFPA 701
5 colors
0-007-06-00232
0-007-06-01632
0-007-06-02032
0-007-06-02432
0-007-06-03132

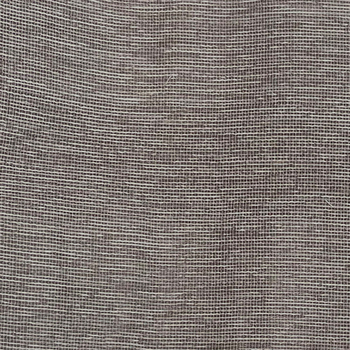

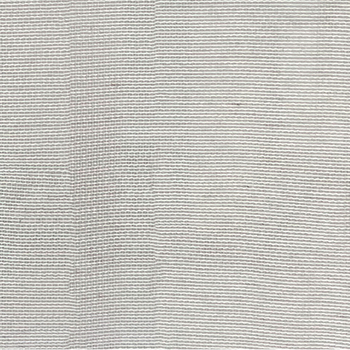

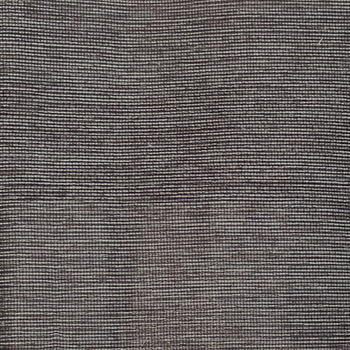

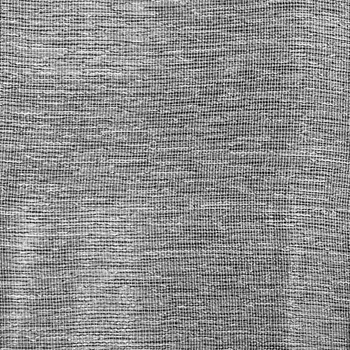

Lace
- Composition
- 96% PES + 4% Linen
- Weight
- 100 g/m² ± 5% | 2.94 oz/yd² ± 5%
- Roll Width
- 3.2 m ± 5% | 126 in ± 5%
- Light Fastness
- Class 6
4 colors
0-007-14-11002
0-007-14-11003
0-007-14-11004
0-007-14-11001

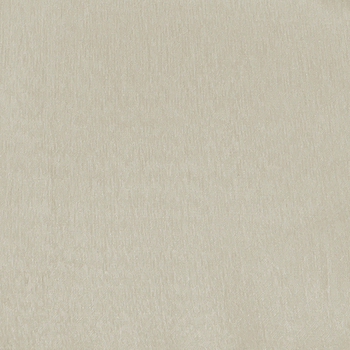

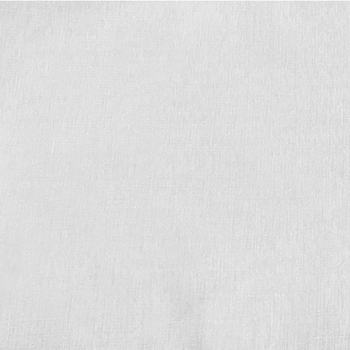

Lumina FR
- Composition
- 100% PES
- Weight
- 85 g/m² ± 5% | 2.50 oz/yd² ± 5%
- Roll Width
- 3 m ± 5% | 118 in ± 5%
- Light Fastness
- Class 5

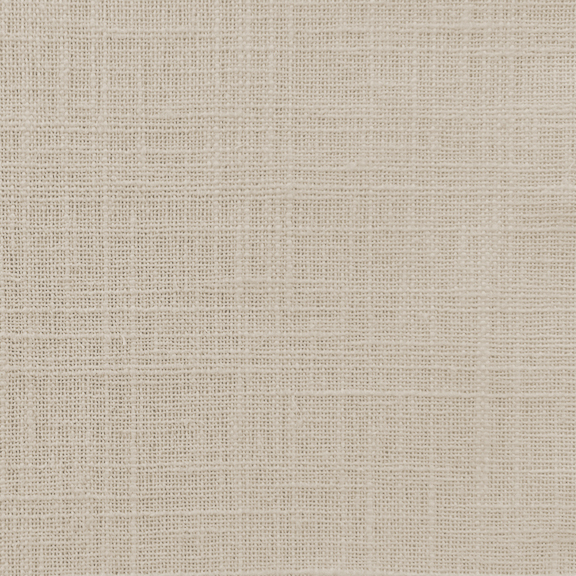

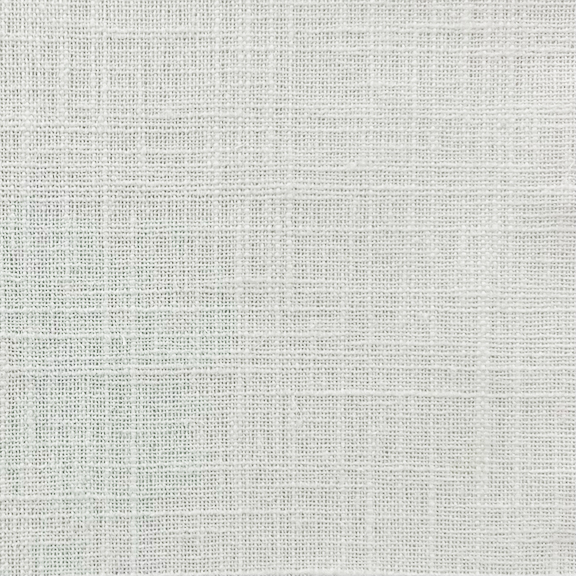

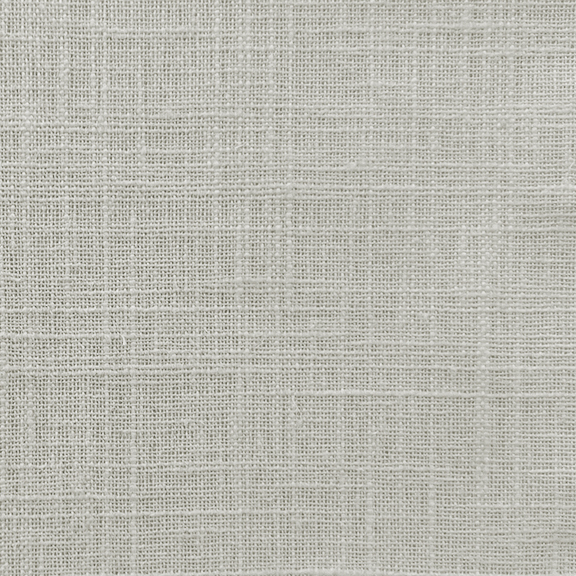

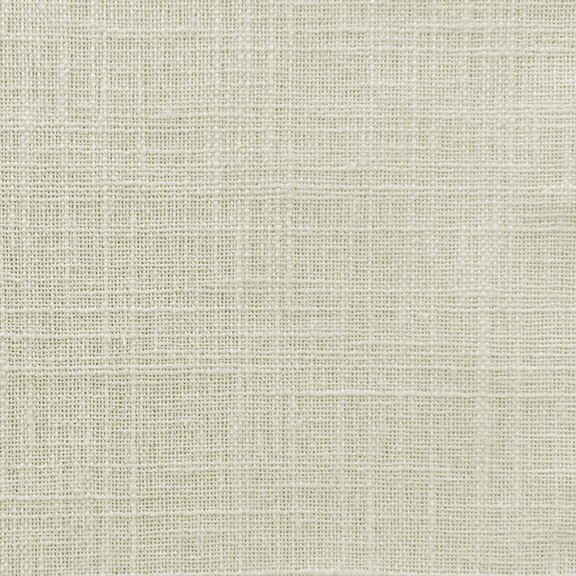

Muller
- Composition
- 65% PES + 25% Cotton + 10% Lino
- Weight
- 125 g/m² ± 5% | 3.68 oz/yd² ± 5%
- Roll Width
- 3.05 m ± 5% | 120 in ± 5%
- Roll Length
- 50 m ± 10% | 55 yd ± 10%
- Light Fastness
- 4-5 Grayscale
4 colors
0-007-42-01700
0-007-42-12773
0-007-42-12774
0-007-42-90848

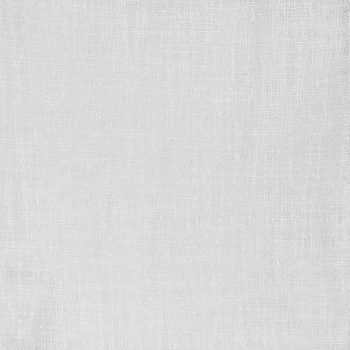

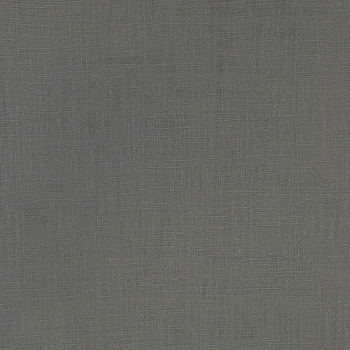

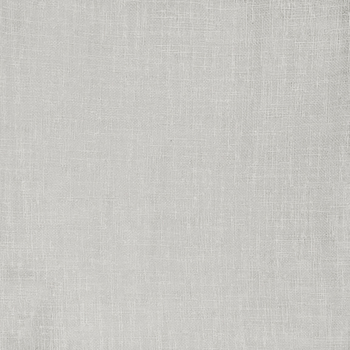

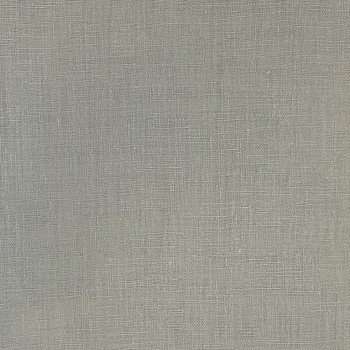

Serenity FR
- Composition
- 100% PES
- Weight
- 160 g/m² ± 5% | 4.71 oz/yd² ± 5%
- Roll Width
- 3.0 m ± 5% | 118 in ± 5%
- Fabric Construction
- Woven
- Fabric Coloring
- Dyed
- Yarn Type
- 100% Continuous Filaments | Non-textured
- Weave Type
- Plain
- Light Fastness
- Class 5

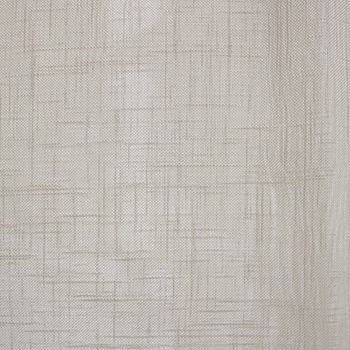

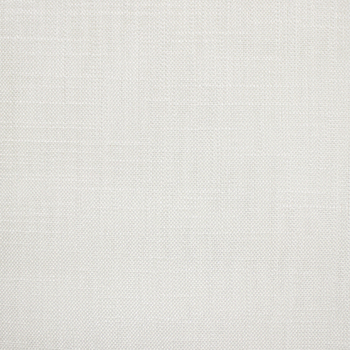

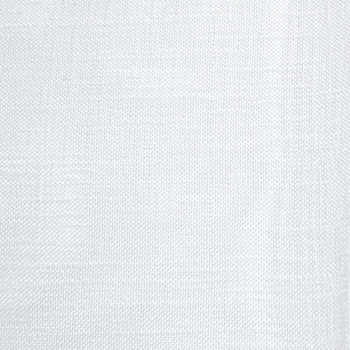

Slide FR
- Composition
- 100% PES
- Weight
- 90 g/m² ± 5% | 2.65 oz/yd² ± 5%
- Roll Width
- 3.0 m ± 5% | 118 in ± 5%
- Fabric Construction
- Woven
- Fabric Coloring
- Dyed
- Yarn Type
- 100% Continuous Filaments | Non-textured
- Weave Type
- Plain
- Light Fastness
- Class 5

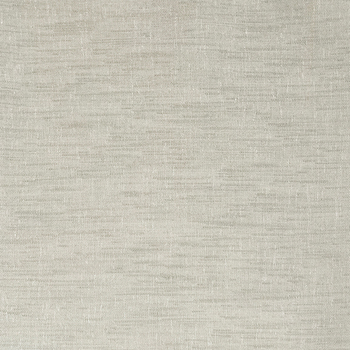

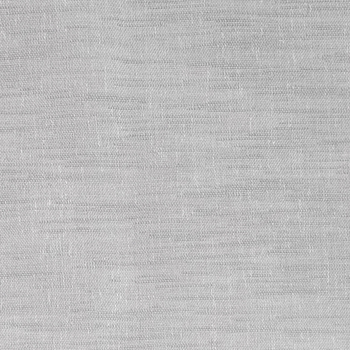

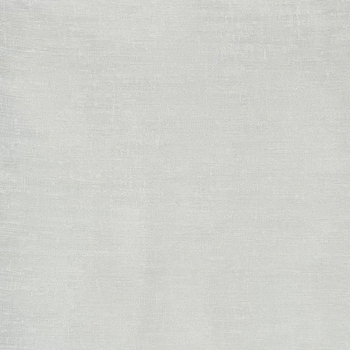

Sonne FR
- Composition
- 100% PES
- Weight
- 130 g/m² ± 5% | 3.83 oz/yd² ± 5%
- Roll Width
- 3.0 m ± 5% | 118 in ± 5%
- Fabric Construction
- Woven
- Fabric Coloring
- Use of yarns of different colors
- Yarn Type
- 100% Continuous Filaments | Non-textured
- Weave Type
- Plain
- Light Fastness
- Class 5
- Flame retardant**
- NFPA 701
Semi-Sheer & Dim Out Fabrics
More body, more privacy, still not a blackout.
Semi-sheer and dim out fabrics have a denser weave: velvets, silky sateens and textured weaves that dim the room considerably and give real privacy day and night, while still letting a trace of light through. The middle ground when a full blackout feels too heavy.

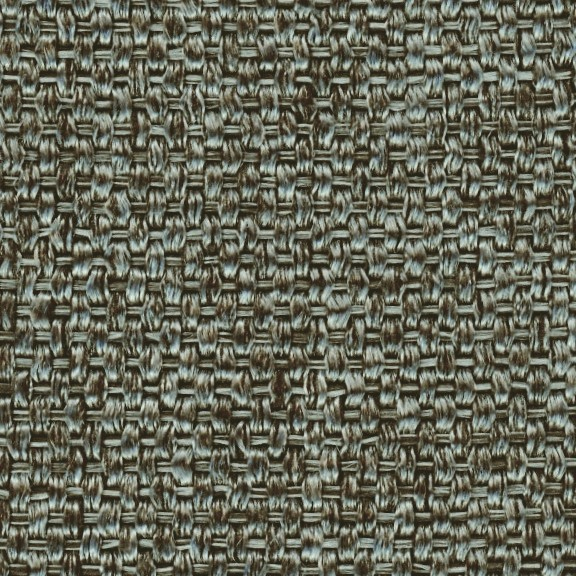

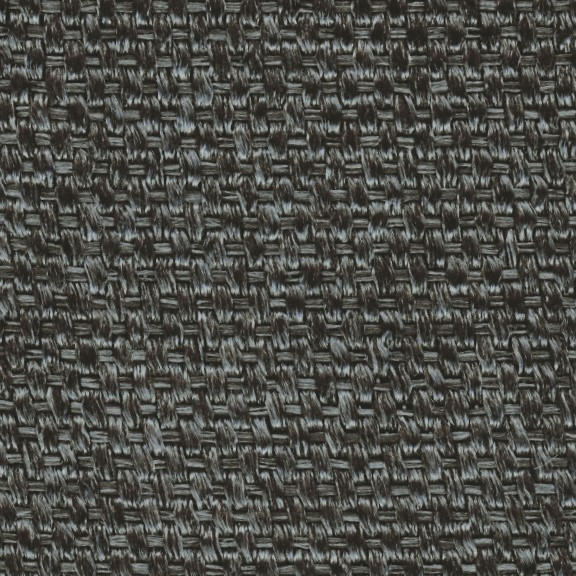

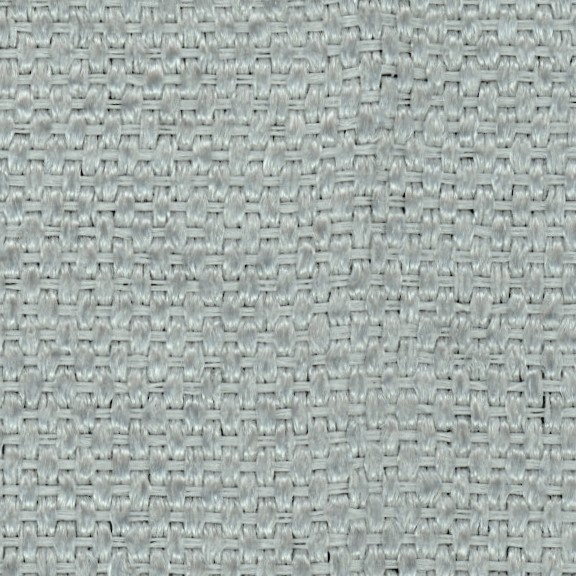

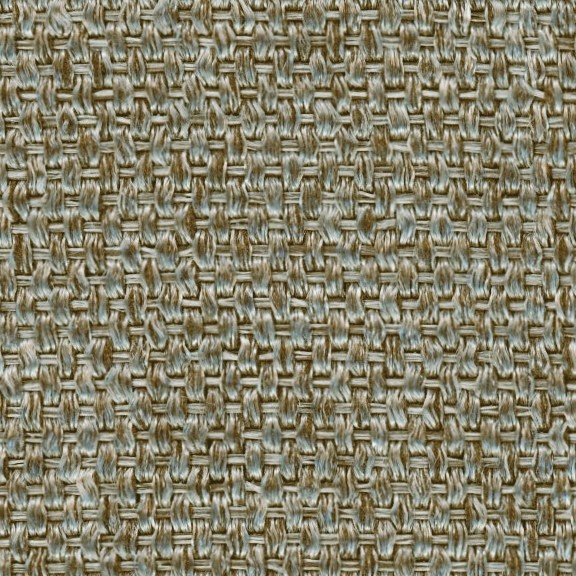

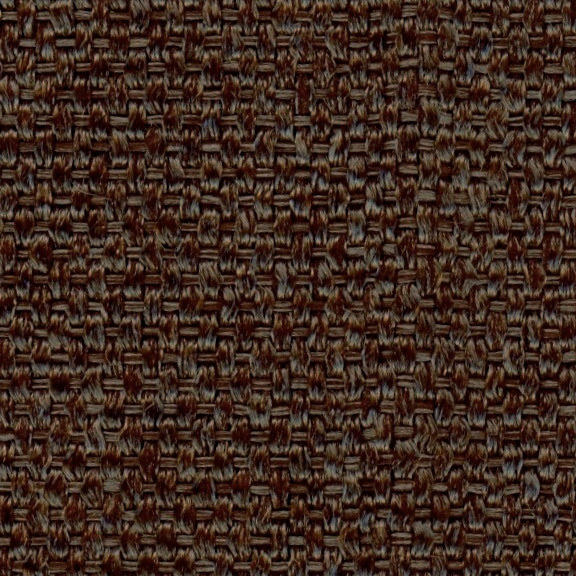

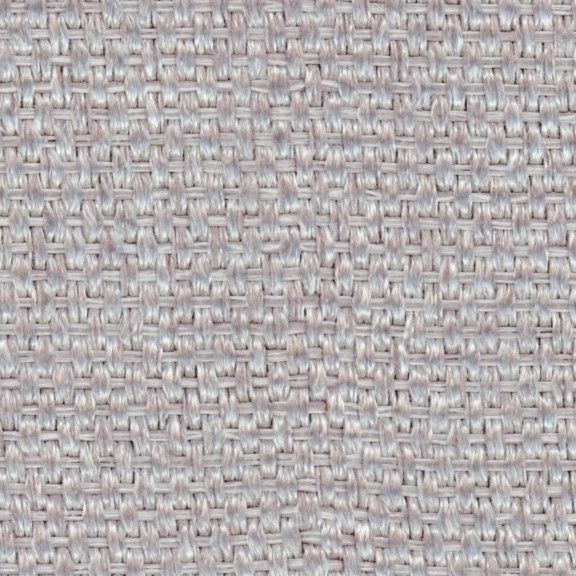

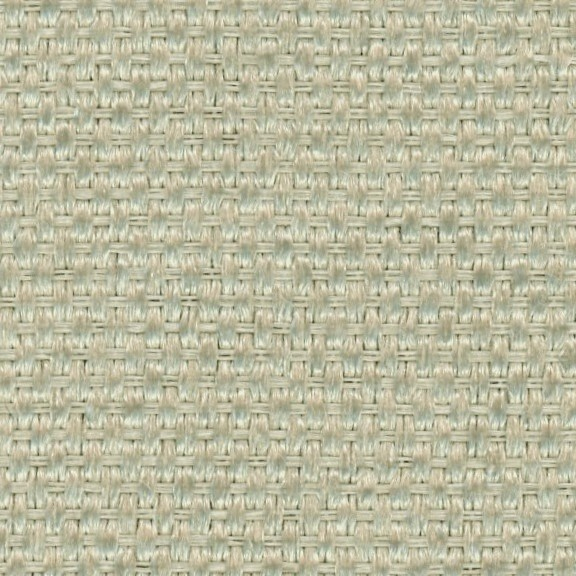

Radiant Silk Dim Out
- Composition
- 100% PES
- Weight
- 275 g/m2 ± 5% | 8.11 oz/yd2 ± 5%
- Roll Width
- 3.0 m ± 5% | 118 in ± 5%
- Thickness
- 0.77 mm ± 5% | 0.030 in ± 5%
7 colors
0-007-27-02003
0-007-27-00203
0-007-27-00703
0-007-27-00103
0-007-27-00803
0-007-27-00903
0-007-27-01003

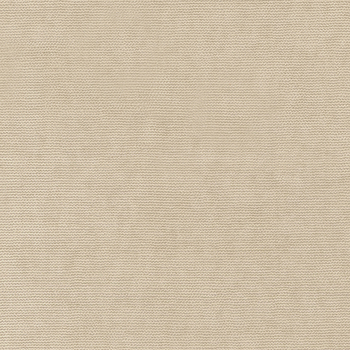

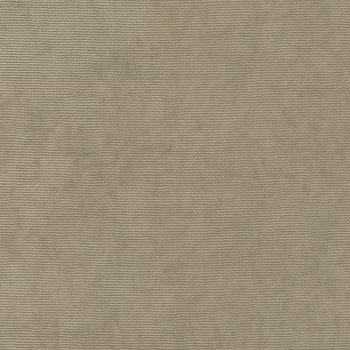

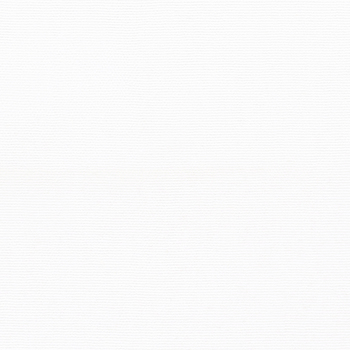

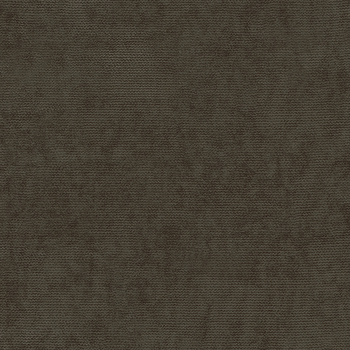

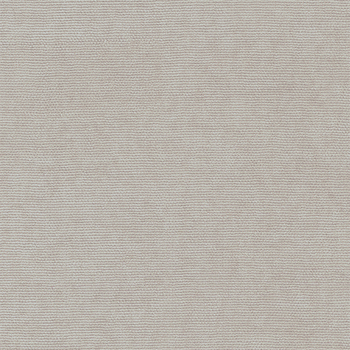

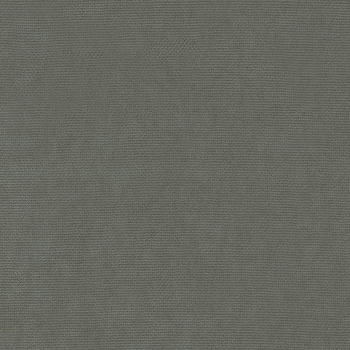

Samt Dim Out
- Composition
- 100% PES
- Weight
- 200 g/m² ± 5% | 5.89 oz/yd² ± 5%
- Roll Width
- 3.0 m ± 5% | 118 in ± 5%
- Fabric Construction
- Woven
- Fabric Coloring
- Dyed
- Yarn Type
- 100% Continuous Filaments | 100% Textured
- Weave Type
- Plain
- Light Fastness
- Class 5-6
6 colors
0-007-15-02403
0-007-15-03103
0-007-15-03203
0-007-15-03303
0-007-15-04103
0-007-15-04303

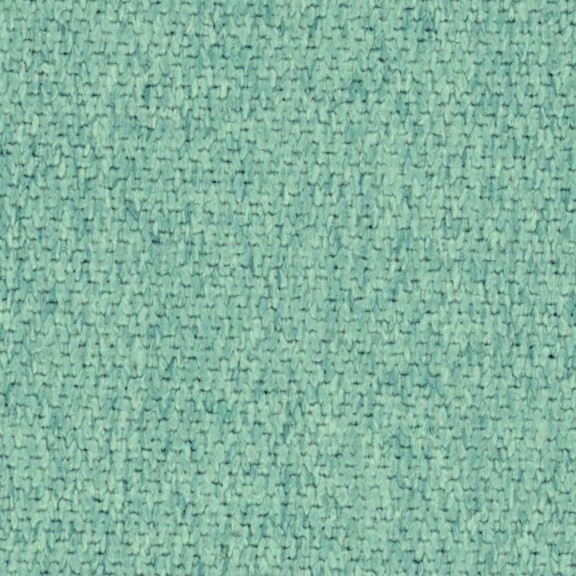

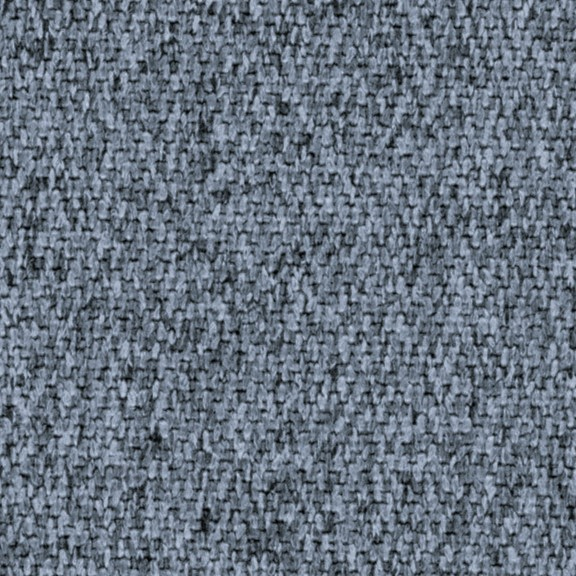

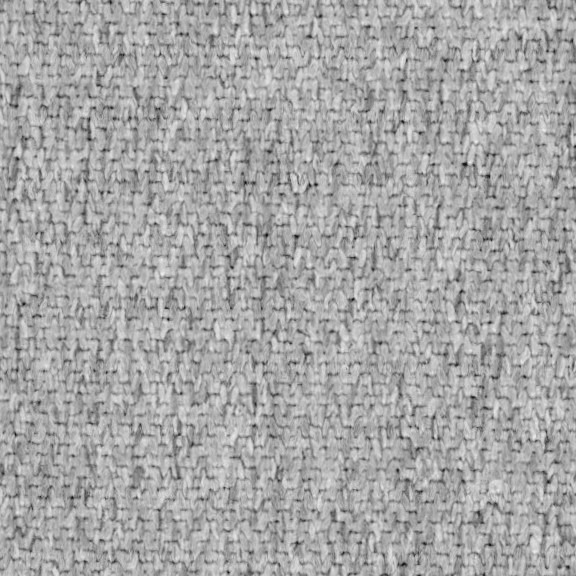

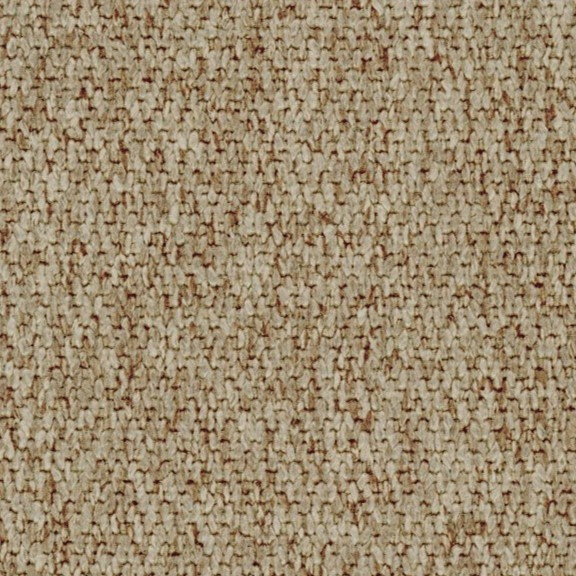

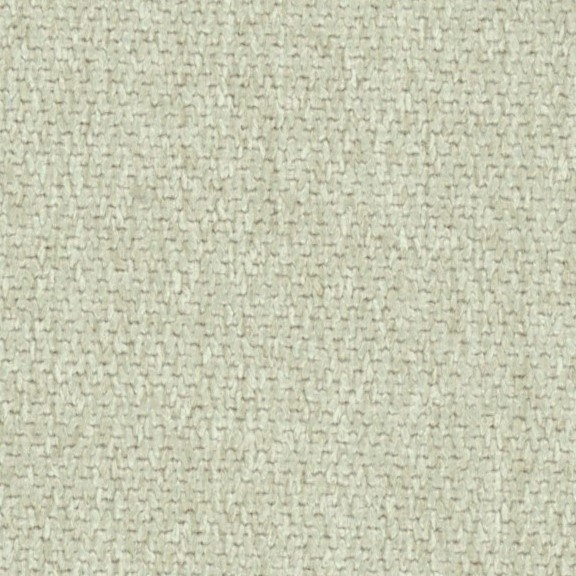

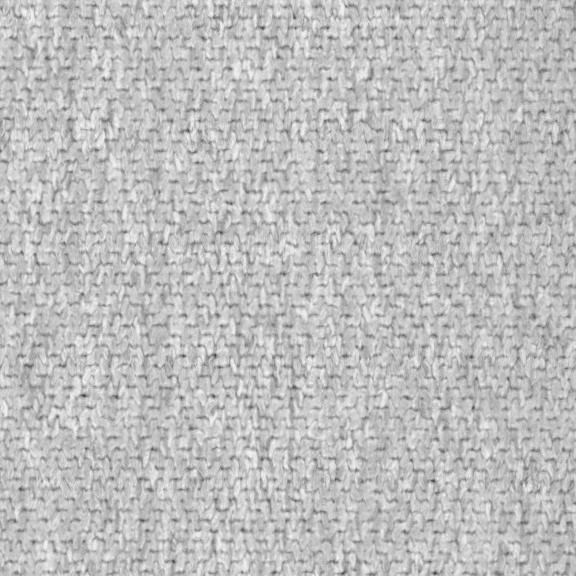

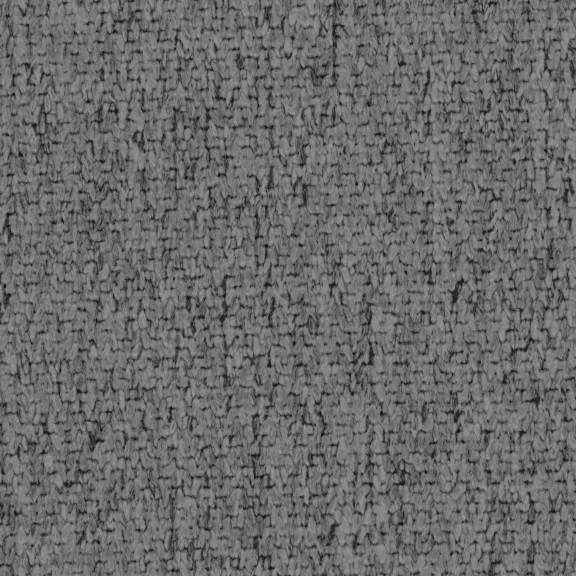

Shadow Fall Dim Out
- Composition
- 100% PES
- Weight
- 350 g/m2 ± 5% | 10.3 oz/yd2 ± 5%
- Roll Width
- 300 cm | 118.11 in
- Roll Length
- 40 m ± 5% | 30 yd ± 5%
- Thickness
- 0.78 mm ± 2% | 0.030 in ± 2%
7 colors
0-007-29-00503
0-007-29-00403
0-007-29-02703
0-007-29-00803
0-007-29-01003
0-007-29-01603
0-007-29-02003

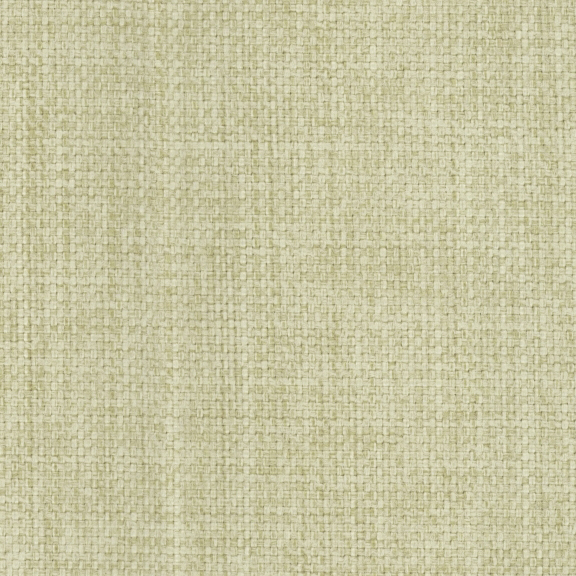

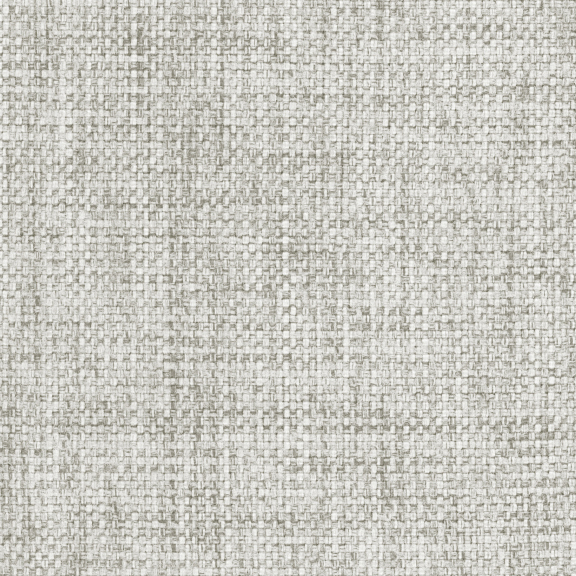

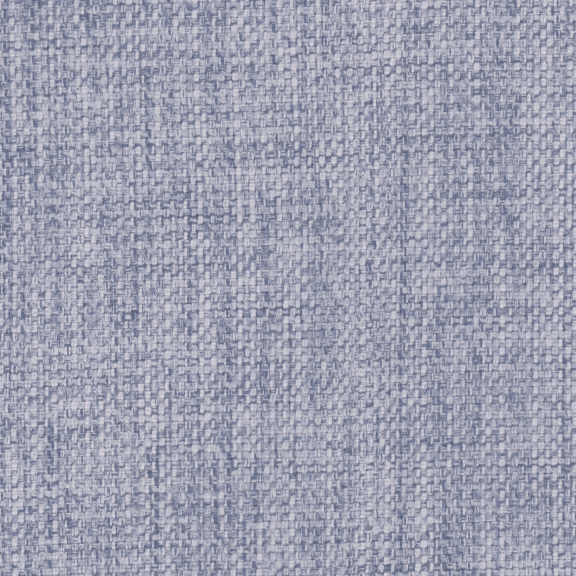

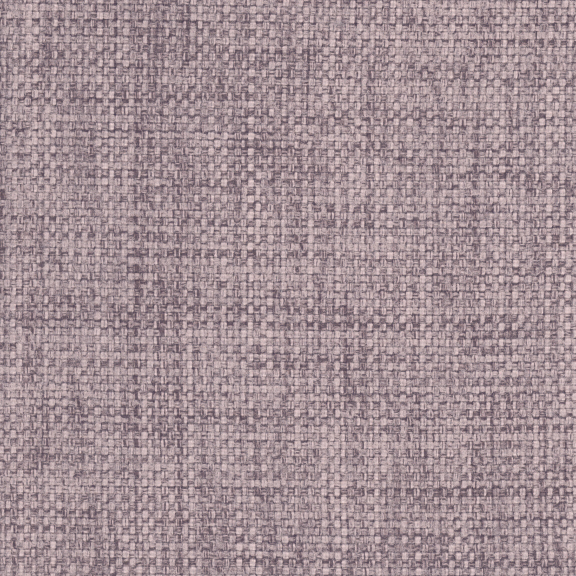

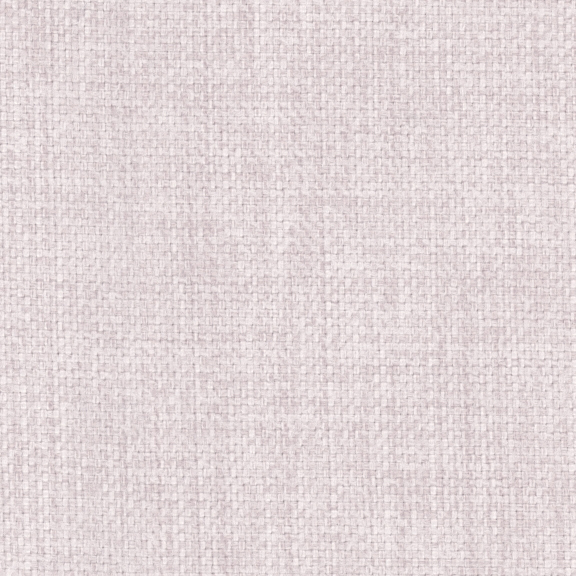

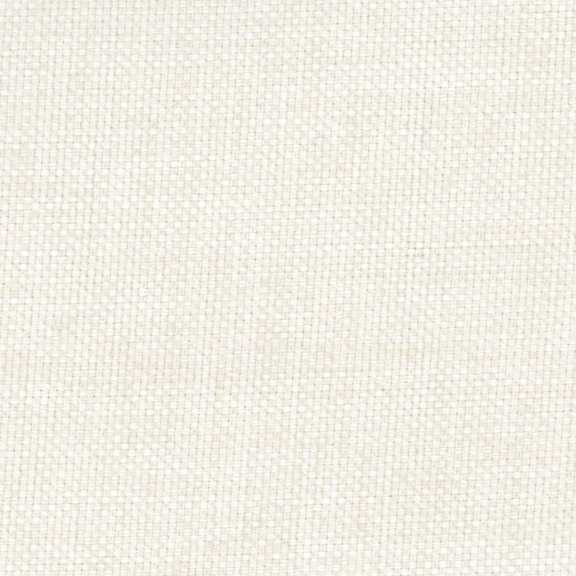

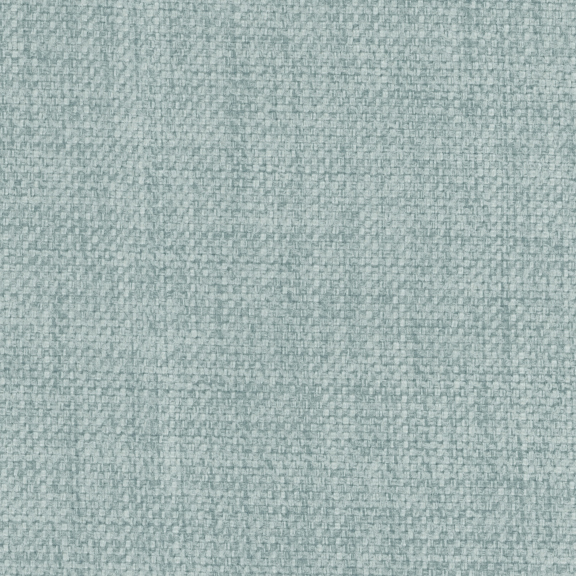

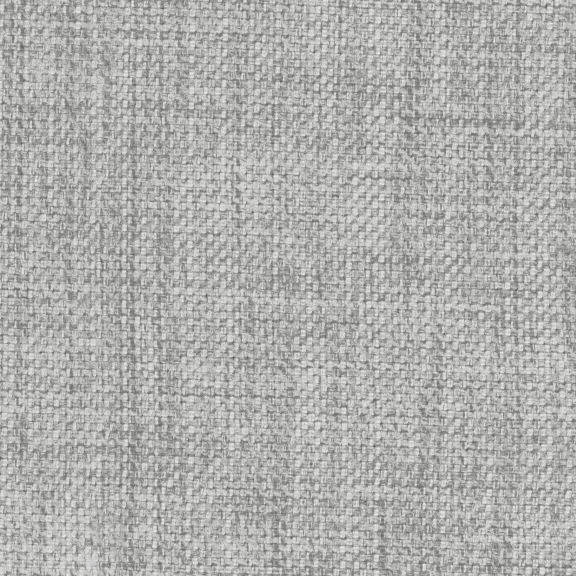

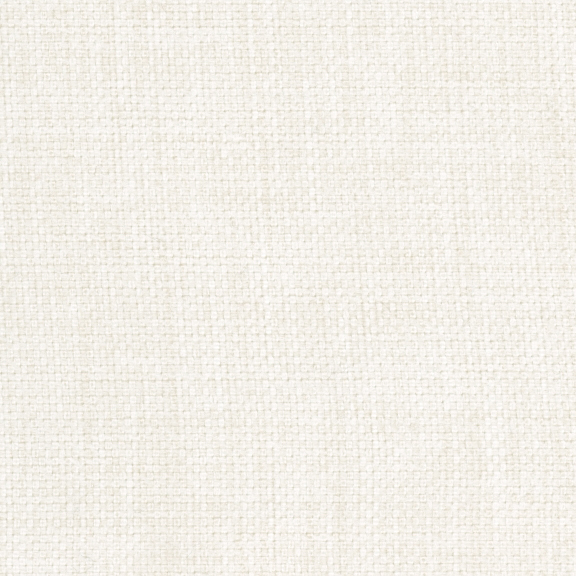

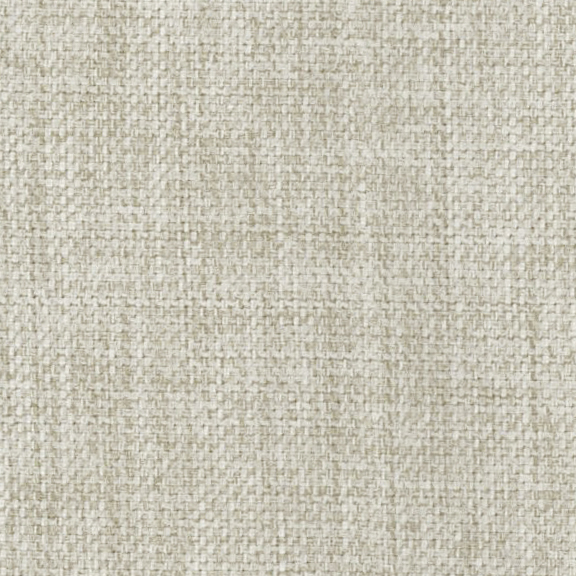

Silky Soft Dim Out
- Composition
- 100% PES
- Weight
- 305 g/m² ± 5% | 9 oz/yd² ± 5%
- Roll Width
- 300 cm | 118 in
- Roll Length
- 35 m ± 5% | 30 yd ± 5%
- Thickness
- 0.62 mm ± 2% | 0.024 in ± 2%
10 colors
0-007-28-07603
0-007-28-08103
0-007-28-07103
0-007-28-06903
0-007-28-06503
0-007-28-04003
0-007-28-05303
0-007-28-05603
0-007-28-07903
0-007-28-06803
Blackout Fabrics
Total darkness, with the hand of a decorative fabric.
These are three-pass or coated blackouts that stop 100% of the light through the cloth and block UV completely. Bedrooms, media rooms and any window facing the morning sun. Run them to the floor and past the jamb on both sides to close the light gaps.

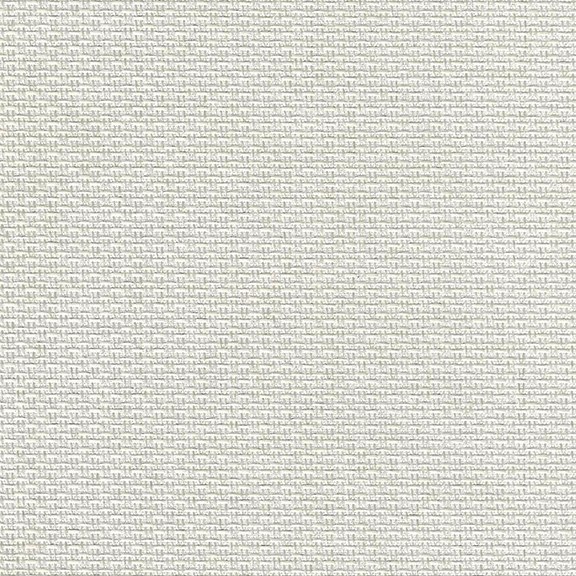

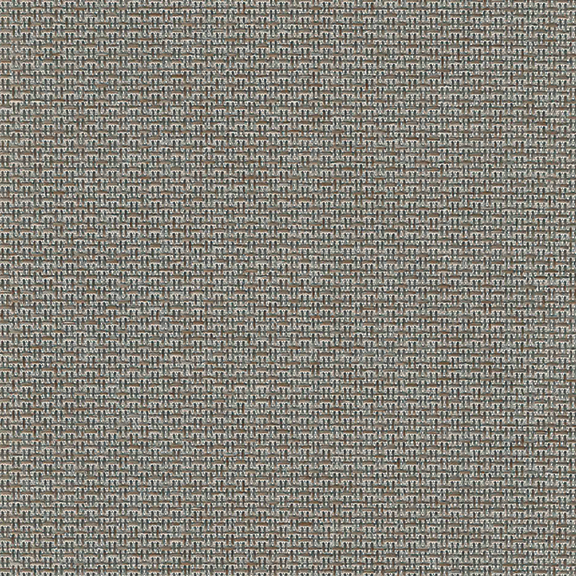

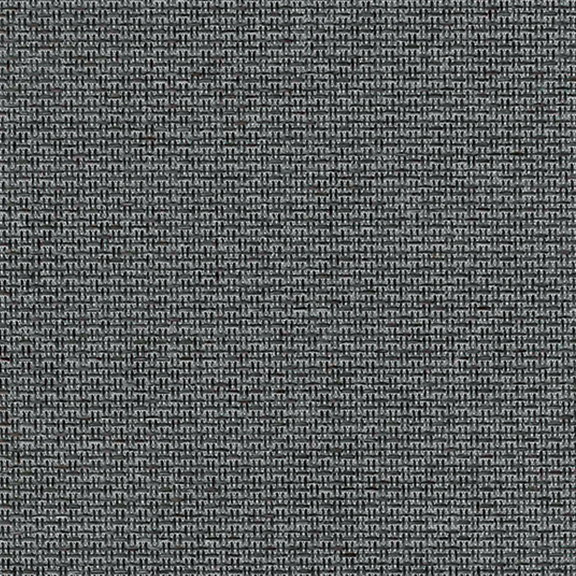

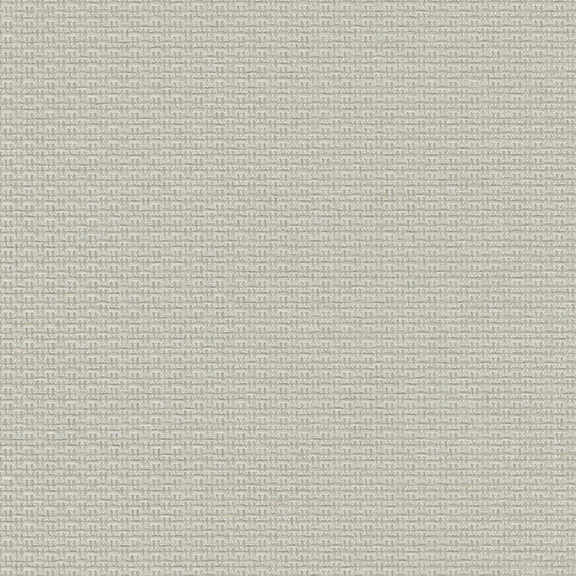

Birmingham Blackout
- Composition
- 100% PES
- Weight
- 405g/m2 ± 5% | 11.94 oz/yd2 ± 5%
- Roll Width
- 2.8 m ± 5% | 110.2 in ± 5%
- Thickness
- 0.72 mm ± 2% | 0.028 in ± 2%
- Roll Length
- 32 m ± 5% | 35 yd ± 5%
- UV Blockage
- 100%
- Light Fastness
- Class 7-8
4 colors
0-007-25-00128
0-007-25-00228
0-007-25-00328
0-007-25-00528

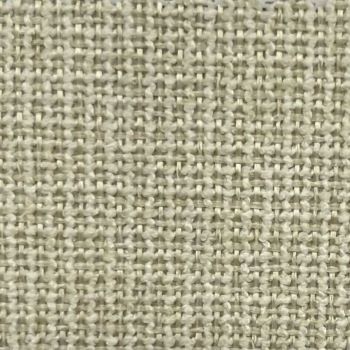

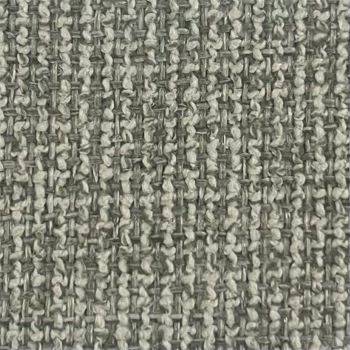

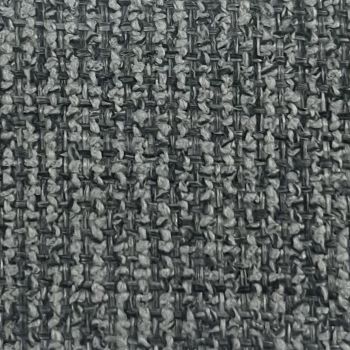

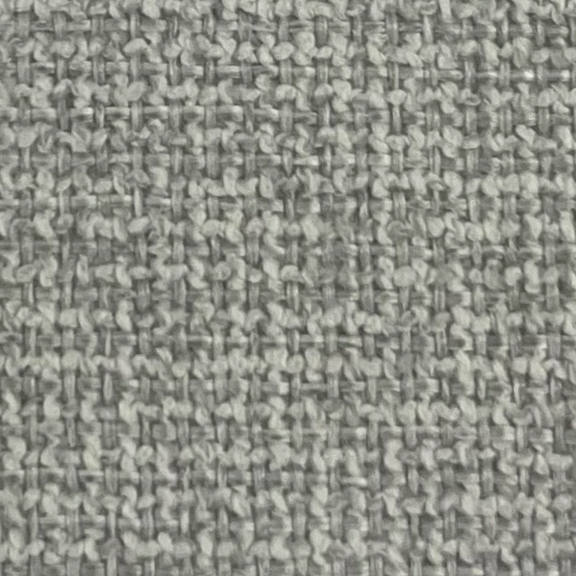

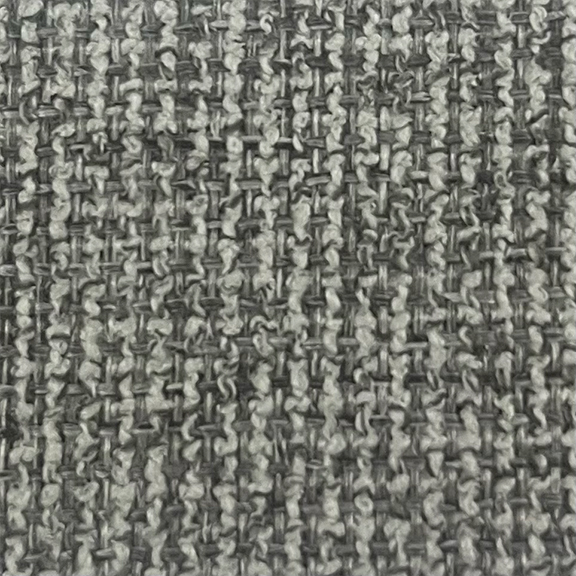

Calma Blackout
- Composition
- 100% PES
- Weight
- 330g/m² ± 5% | 9.73 oz/yd² ± 5%
- Thickness
- 0.70 mm ± 5% | 0.027 in ± 5%
- Roll Width
- 2.8 m ± 5% | 110.2 in ± 5%
- Roll Length
- 35 m ± 5% | 38 yd ± 5%
- Light Fastness
- Class 3
5 colors
0-007-52-00328
0-007-52-01528
0-007-52-02528
0-007-52-03028
0-007-52-14028

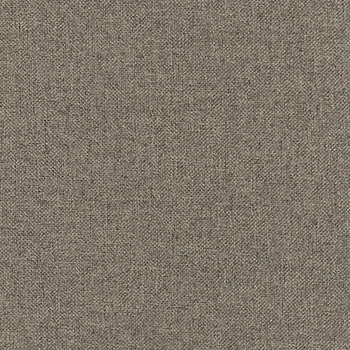

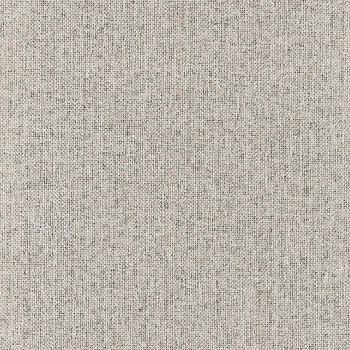

Charm Blackout
- Composition
- 100% PES
- Weight
- 290 g/m² ± 5% | 8.55 oz/yd² ± 5%
- Roll Width
- 3.0 m ± 5% | 118 in ± 5%
- Light Fastness
- Class 3
6 colors
0-007-23-02428
0-007-23-02628
0-007-23-02928
0-007-23-03328
0-007-23-03028
0-007-23-02228

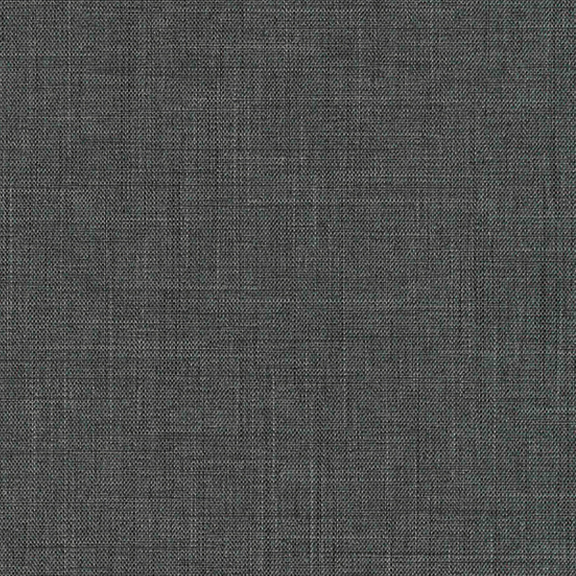

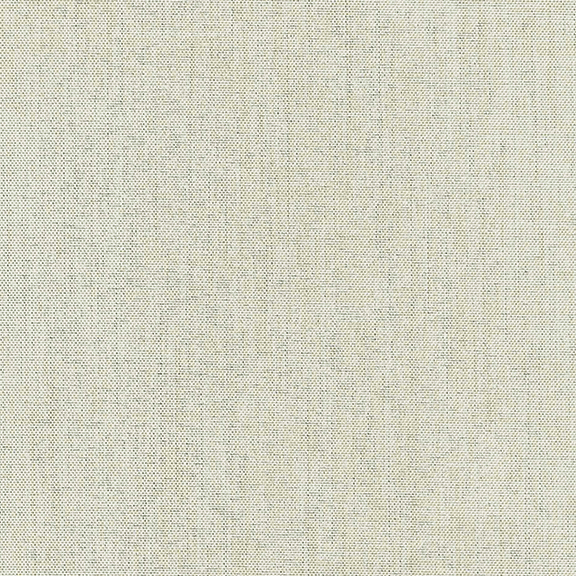

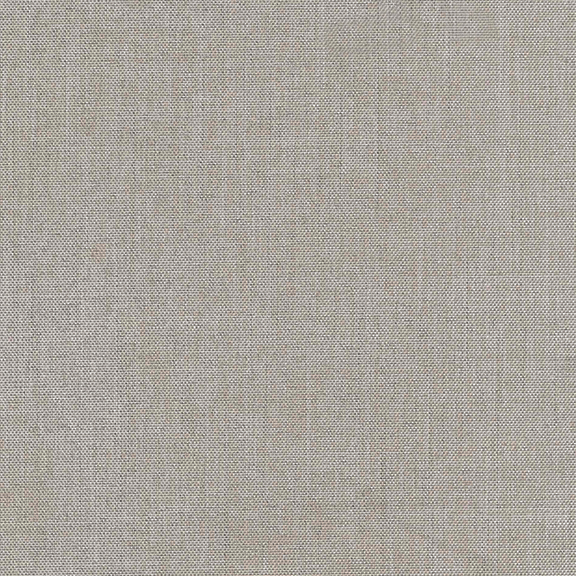

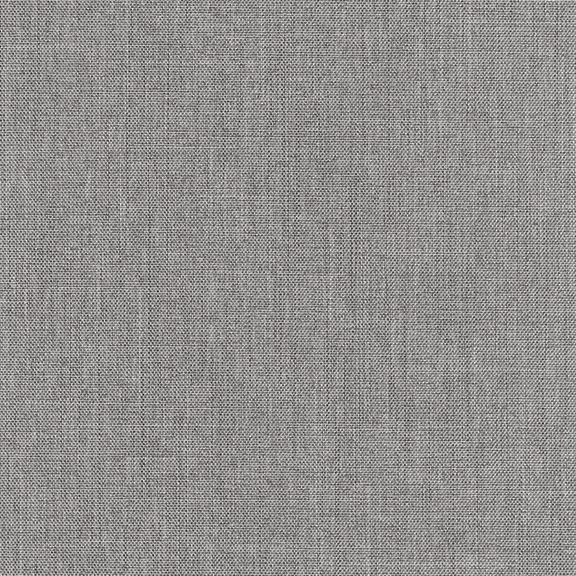

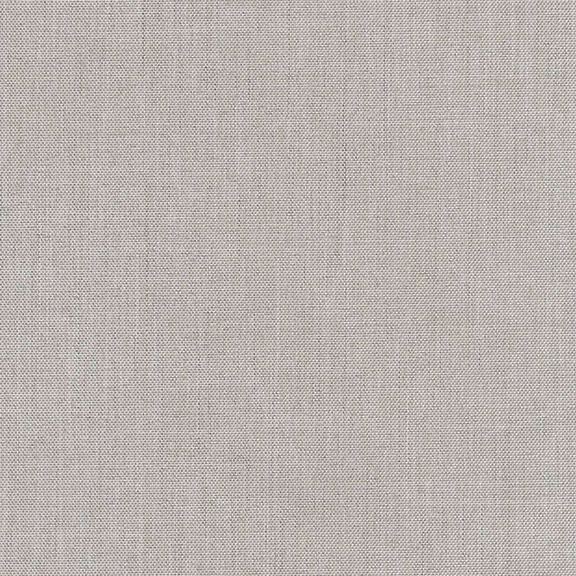

Dream Weave Blackout
- Composition
- 100% PES
- Weight
- 310g/m2 ± 5% | 9.14 oz/yd2 ± 5%
- Roll Width
- 2.8 m ± 5% | 110.2 in ± 5%
- Thickness
- 0.44 mm ± 2% | 0.017 in ± 2%
- Roll Length
- 32 m ± 5% | 35 yd ± 5%
- UV Blockage
- 100%
- Light Fastness
- Class 7-8
5 colors
0-007-24-00128
0-007-24-00428
0-007-24-00528
0-007-24-00228
0-007-24-00328

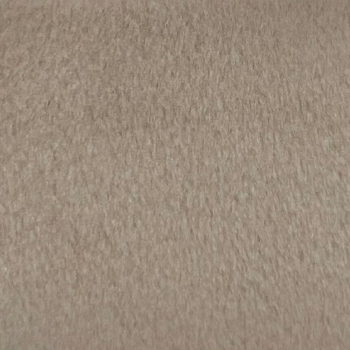

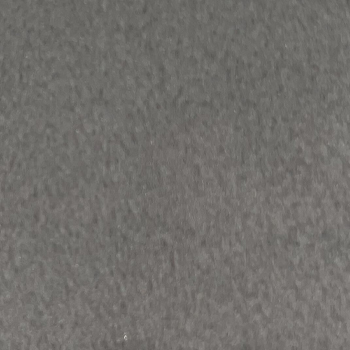

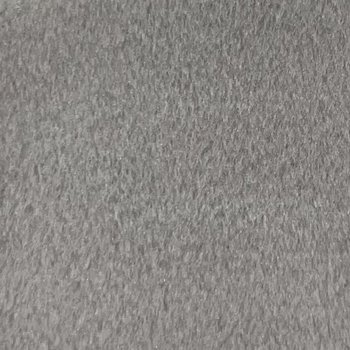

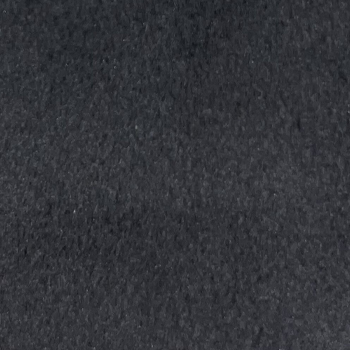

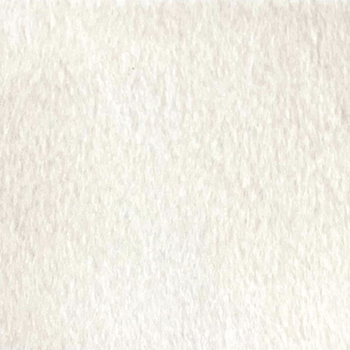

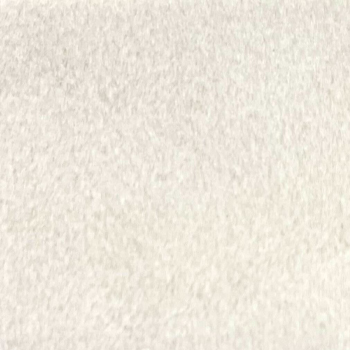

Imperial Blackout
- Composition
- 80% PES + 20% Foam Coated<br>Emulsion Acrylic Coating
- Weight
- 323g/m² ± 5% | 9.53 oz/yd² ± 5
- Roll Width
- 2.8 m ± 5% | 110.2 in ± 5%
- Roll Length
- 32 m ± 5% | 35 yd ± 5%
- UV Blockage
- 100%
- Light Fastness
- Class 7-8
6 colors
0-007-51-01028
0-007-51-03028
0-007-51-04028
0-007-51-06028
0-007-51-07028
0-007-51-08028

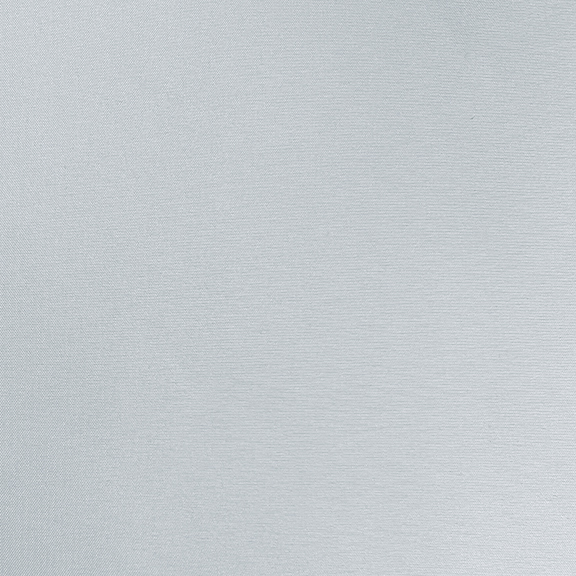

Lining Blackout
- Composition
- 100% PES
- Weight
- 195 g/m² ± 5% | 6.87 oz/yd² ± 5%
- Roll Width
- 2.8 m ± 5% | 110.2 in ± 5%
- Roll Length
- 60 m ± 5% | 65.61 yd ± 5%
- Light Fastness
- Class 5

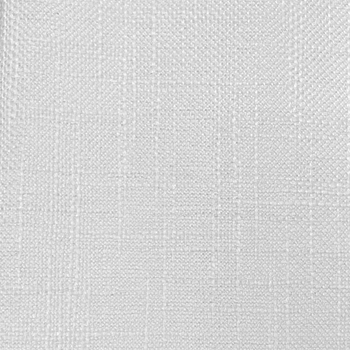

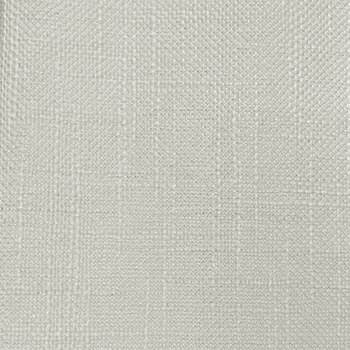

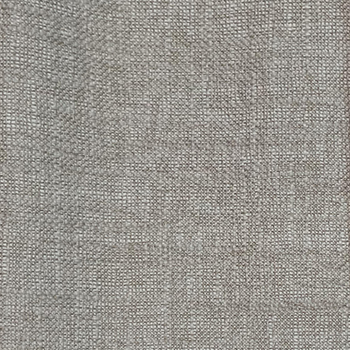

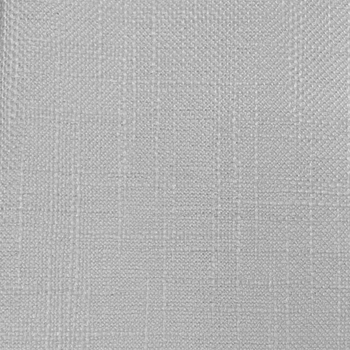

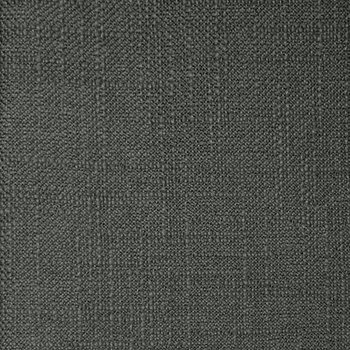

Matt Blackout
- Composition
- 100% PES with Acrylic Coating
- Weight
- 430 g/m² ± 5% | 12.68 oz/yd² ± 5%
- Roll Width
- 2.8 m ± 5% | 110.2 in ± 5%
- UV Blockage
- 100%
- Light Fastness
- ISO 105-B02 | 4 Xenotest Grade
- Flame Retardant **
- NFPA 701 (Cloud , Driftwood, and Shell)
5 colors
0-007-12-01201
0-007-12-01205
0-007-12-01204
0-007-12-01202
0-007-12-01203

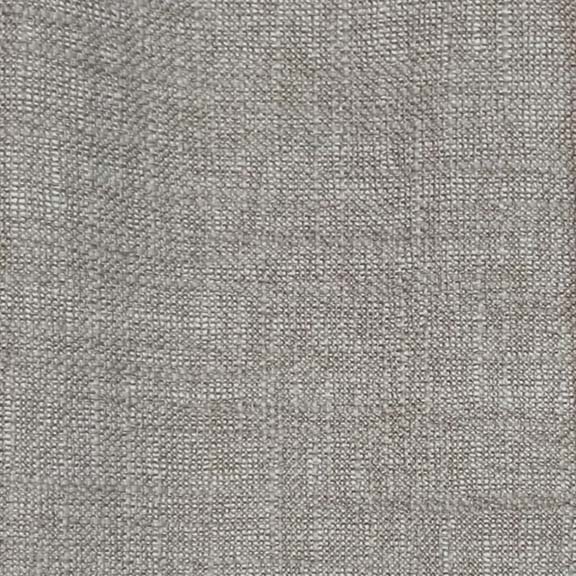

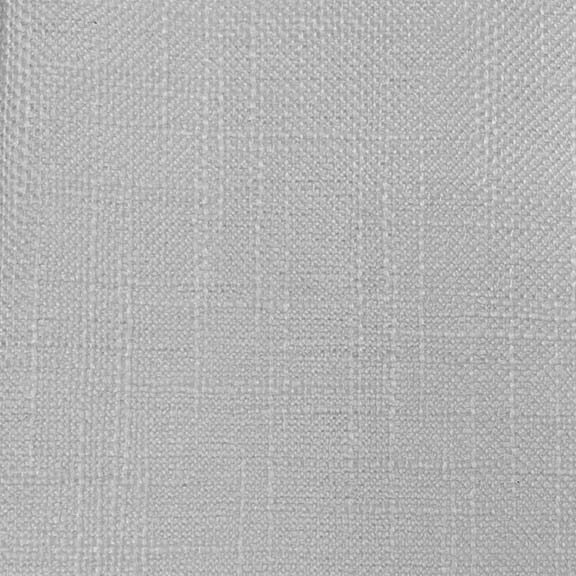

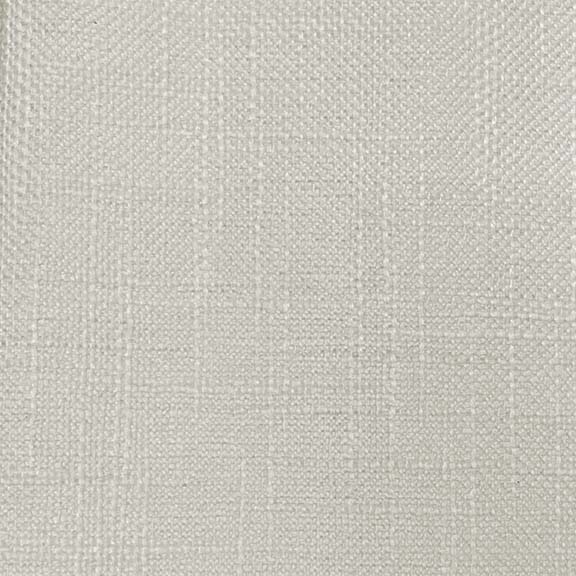

Matt Blackout FR
- Composition
- 100% PES with Acrylic Coating
- Weight
- 430 g/m² ± 5% | 12.68 oz/yd² ± 5%
- Roll Width
- 2.8 m ± 5% | 110.2 in ± 5%
- UV Blockage
- 100%
- Light Fastness
- ISO 105-B02 | 4 Xenotest Grade
- Flame Retardant**
- NFPA 701 (Cloud , Driftwood, and Shell)

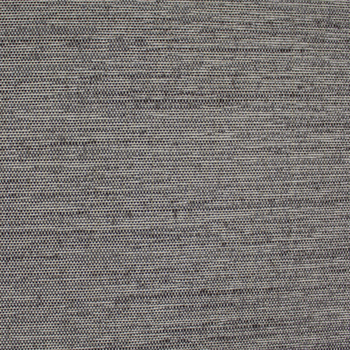

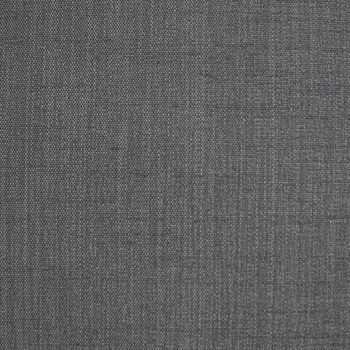

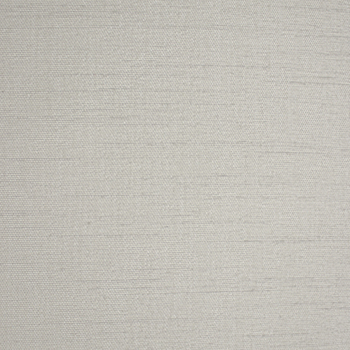

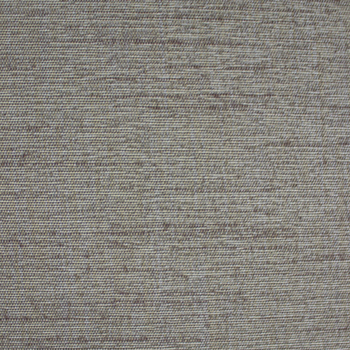

Night I Decorative Blackout
- Composition
- T/R 80/20 with Acrylic Coating
- Weight
- 335 g/m² ± 5% | 9.88 oz/yd² ± 5%
- Roll Width
- 2.8 m ± 5% | 110.2 in ±5%
- UV Blockage
- 100%
- Light Fastness
- ISO 105-B02 | 4 Xenotest Grade

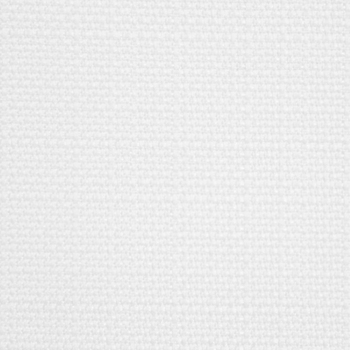

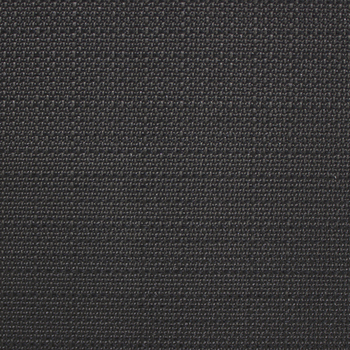

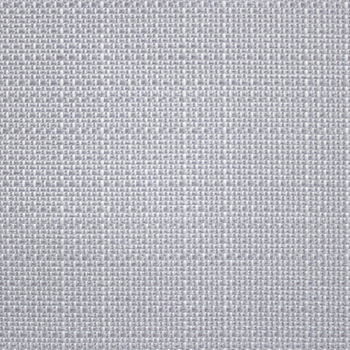

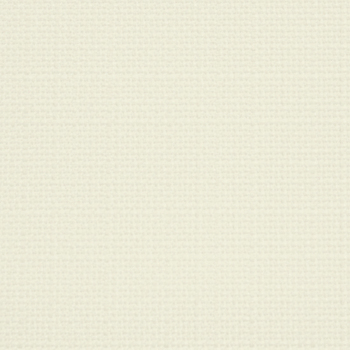

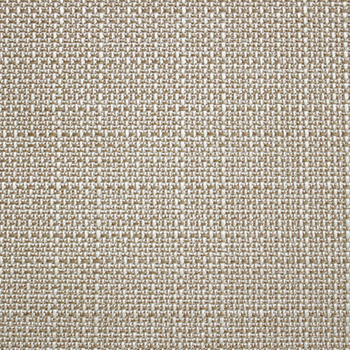

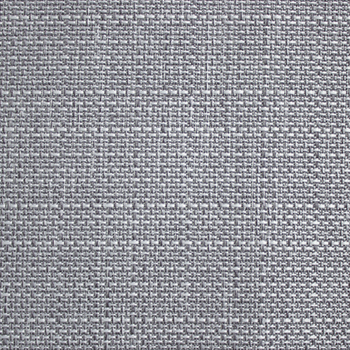

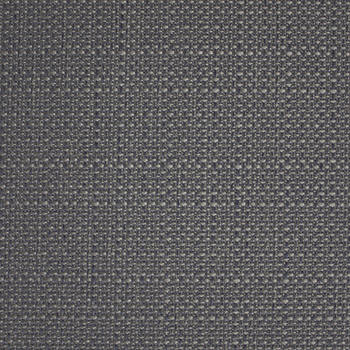

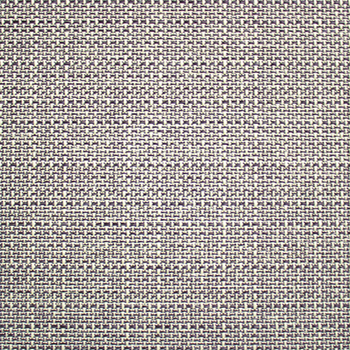

Night II Decorative Blackout
- Composition
- 100% PES with Acrylic Coating
- Weight
- 355 g/m² ± 5% | 10.47 oz/yd² ± 5%
- Roll Width
- 2.8 m ± 5% | 110.2 in ± 5%
- UV Blockage
- 100%
- Light Fastness
- ISO 105-B02 | 4 Xenotest Grade
8 colors
0-007-11-01403
0-007-11-02303
0-007-11-02403
0-007-11-02603
0-007-11-02803
0-007-11-03103
0-007-11-02703
0-007-11-03303

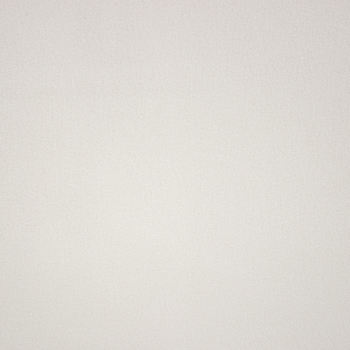

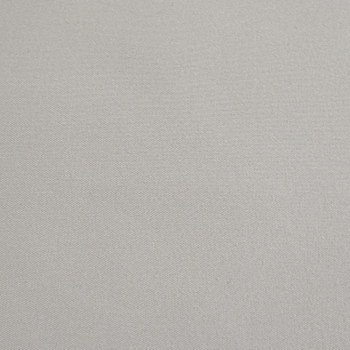

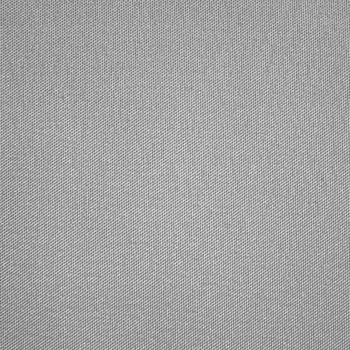

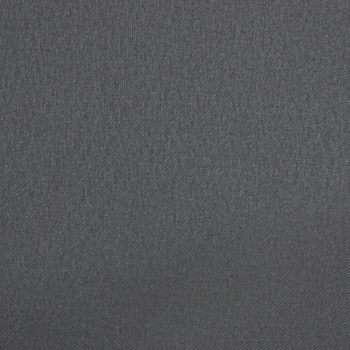

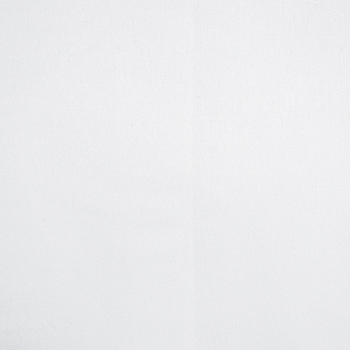

Nighttime Blackout
- Composition
- 100% PES with Acrylic Coating
- Weight
- 260 g/m² ± 5% | 7.66 oz/yd² ± 5%
- Roll Width
- 2.8 m ± 5% | 110.2 in ± 5%
- UV Blockage
- 100%
- Light Fastness
- ISO 105-B02 | 4 Xenotest Grade
5 colors
0-007-09-01328
0-007-09-02028
0-007-09-02303
0-007-09-02428
0-007-09-03103

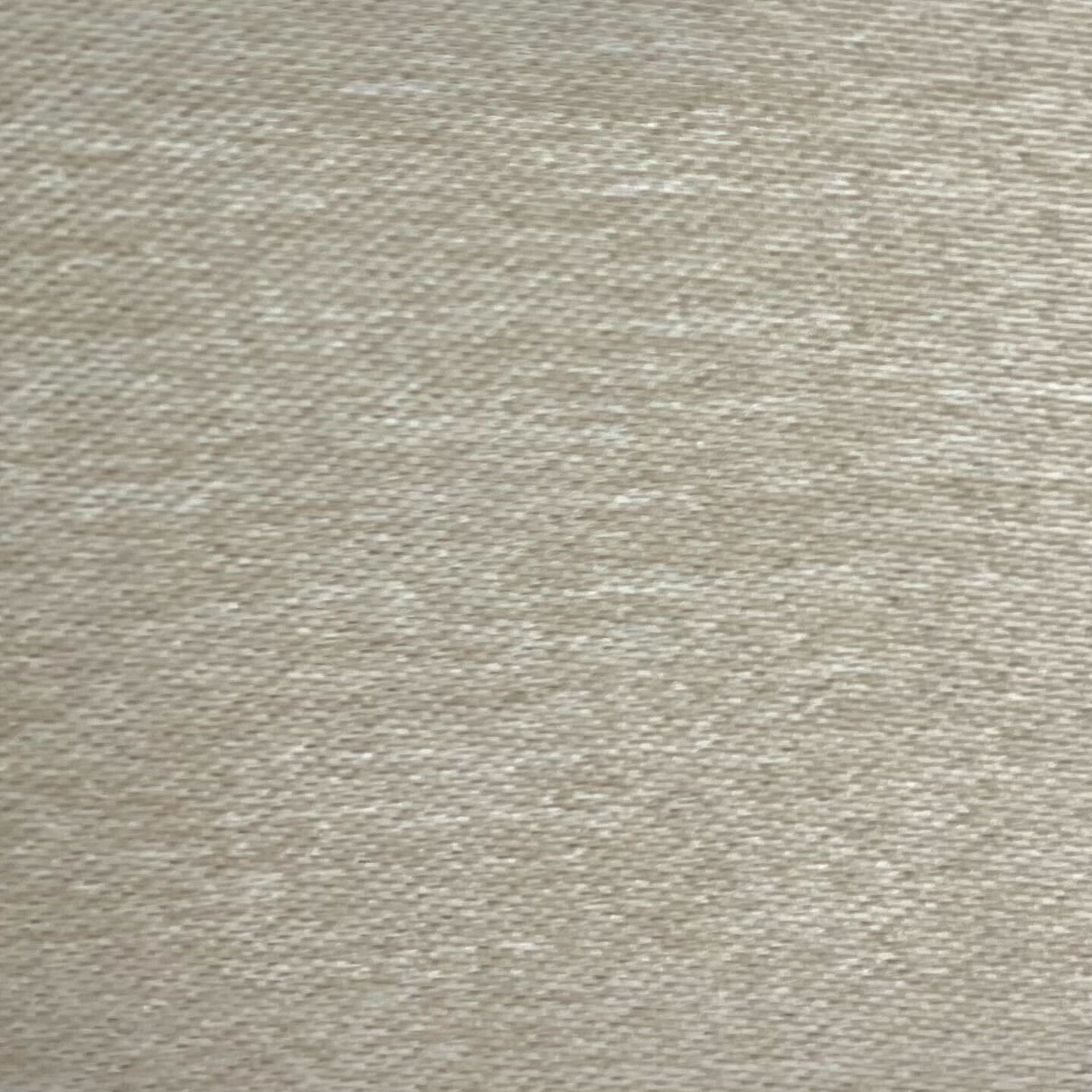

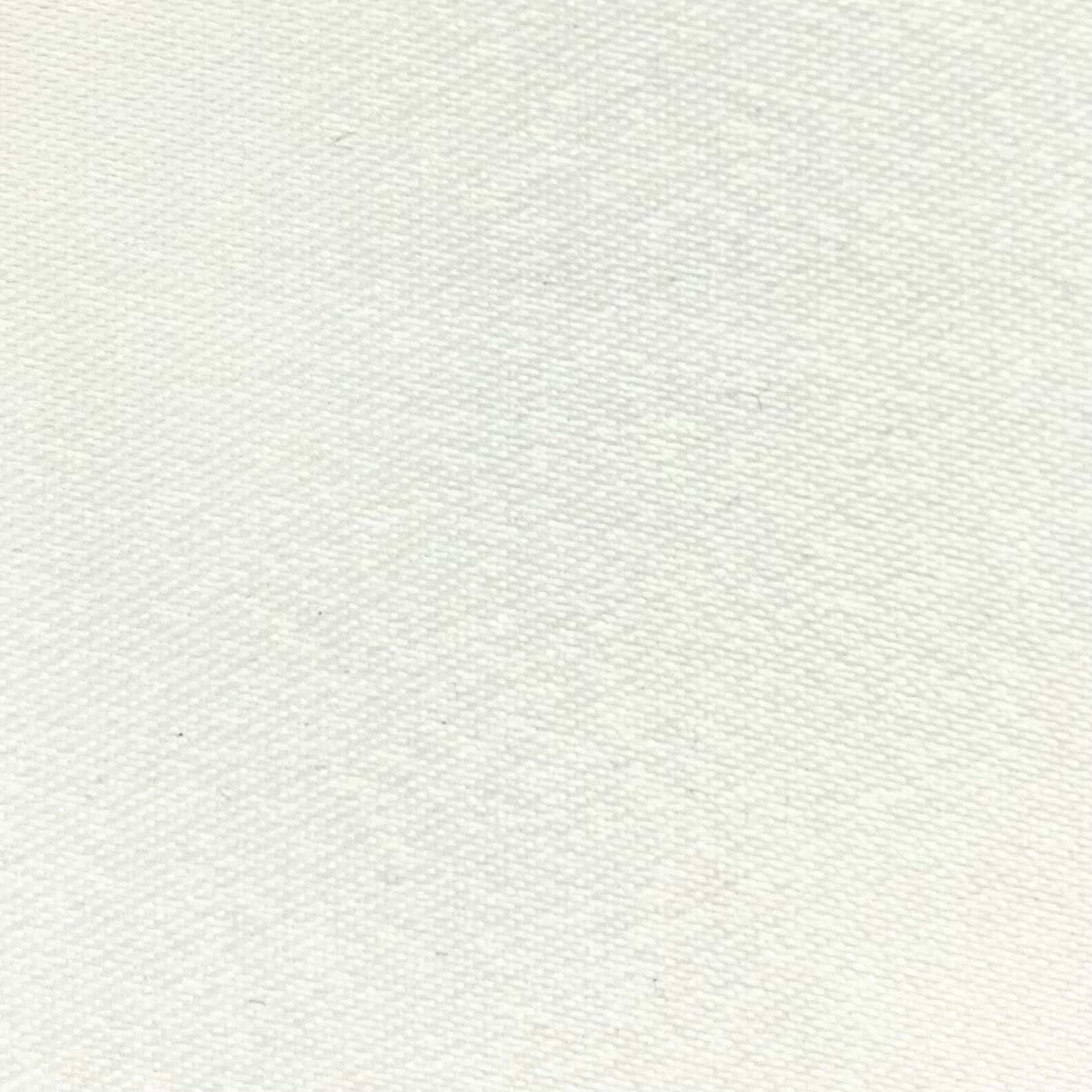

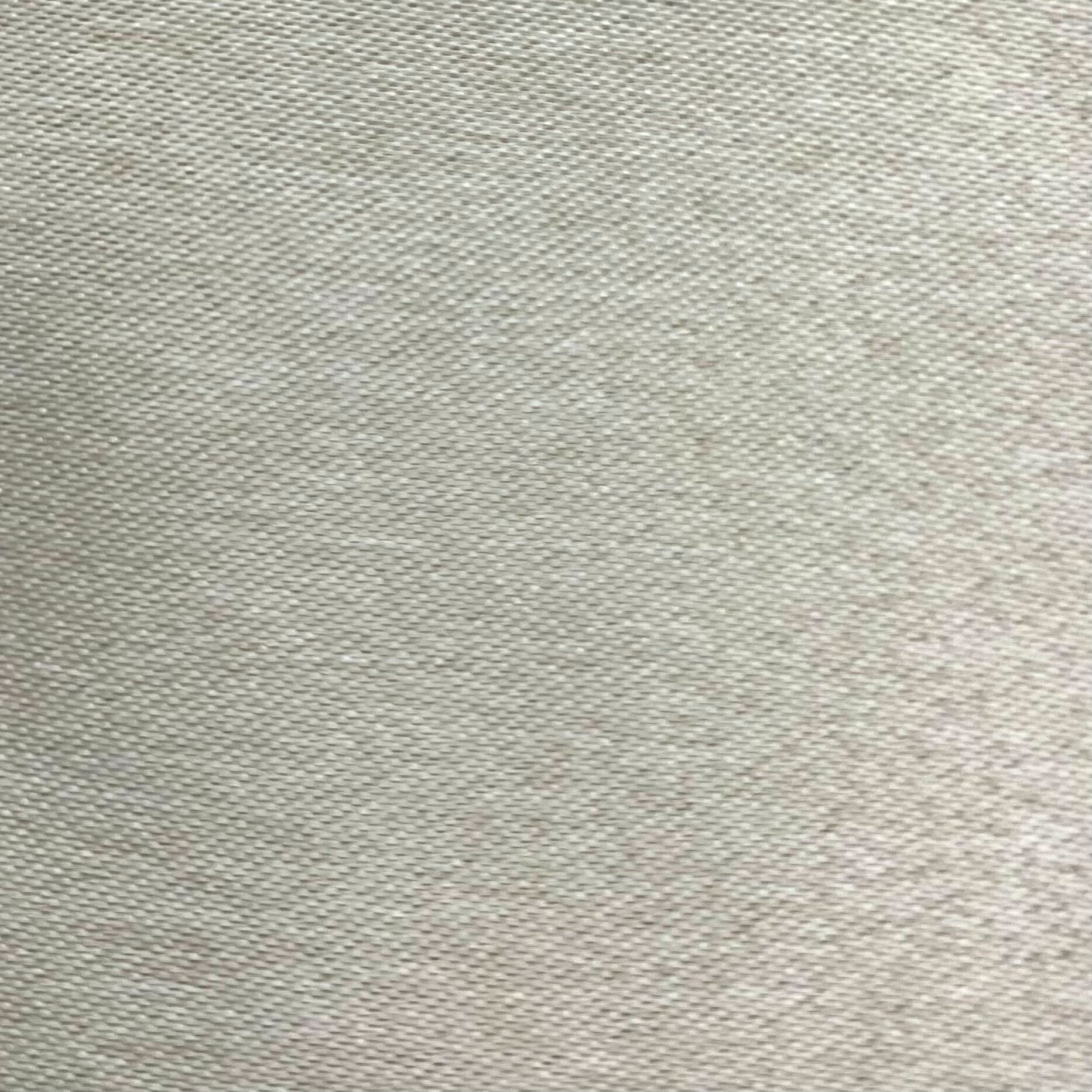

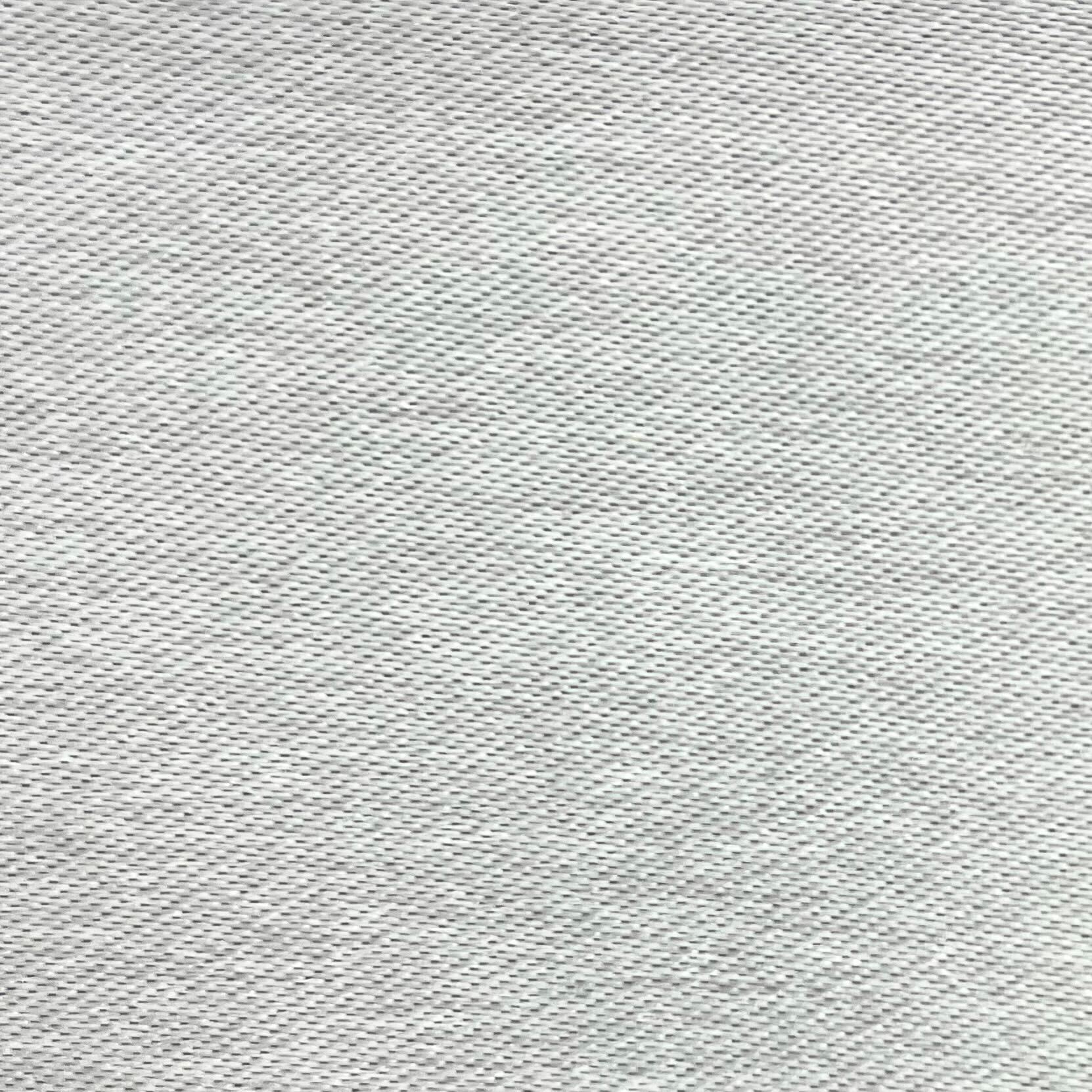

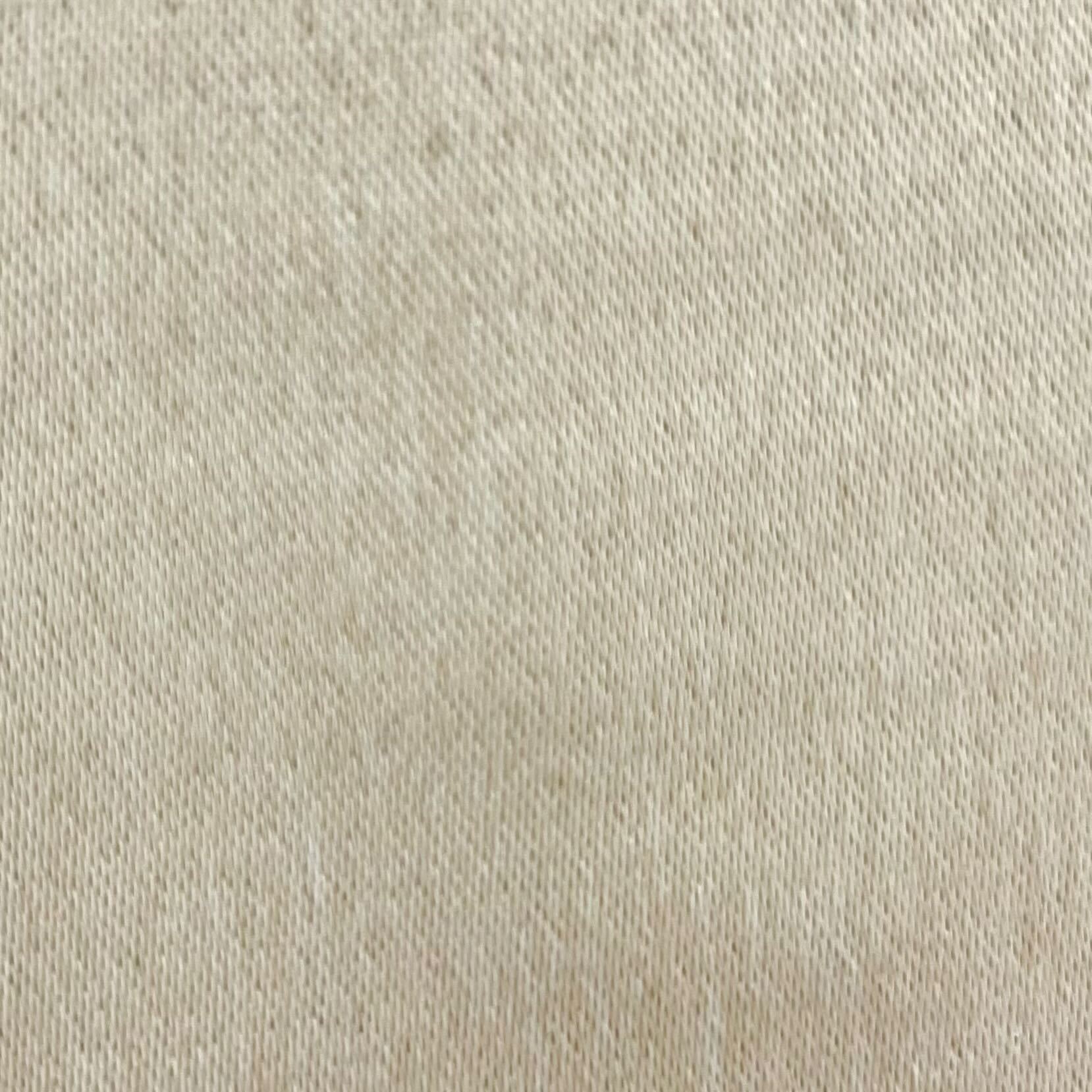

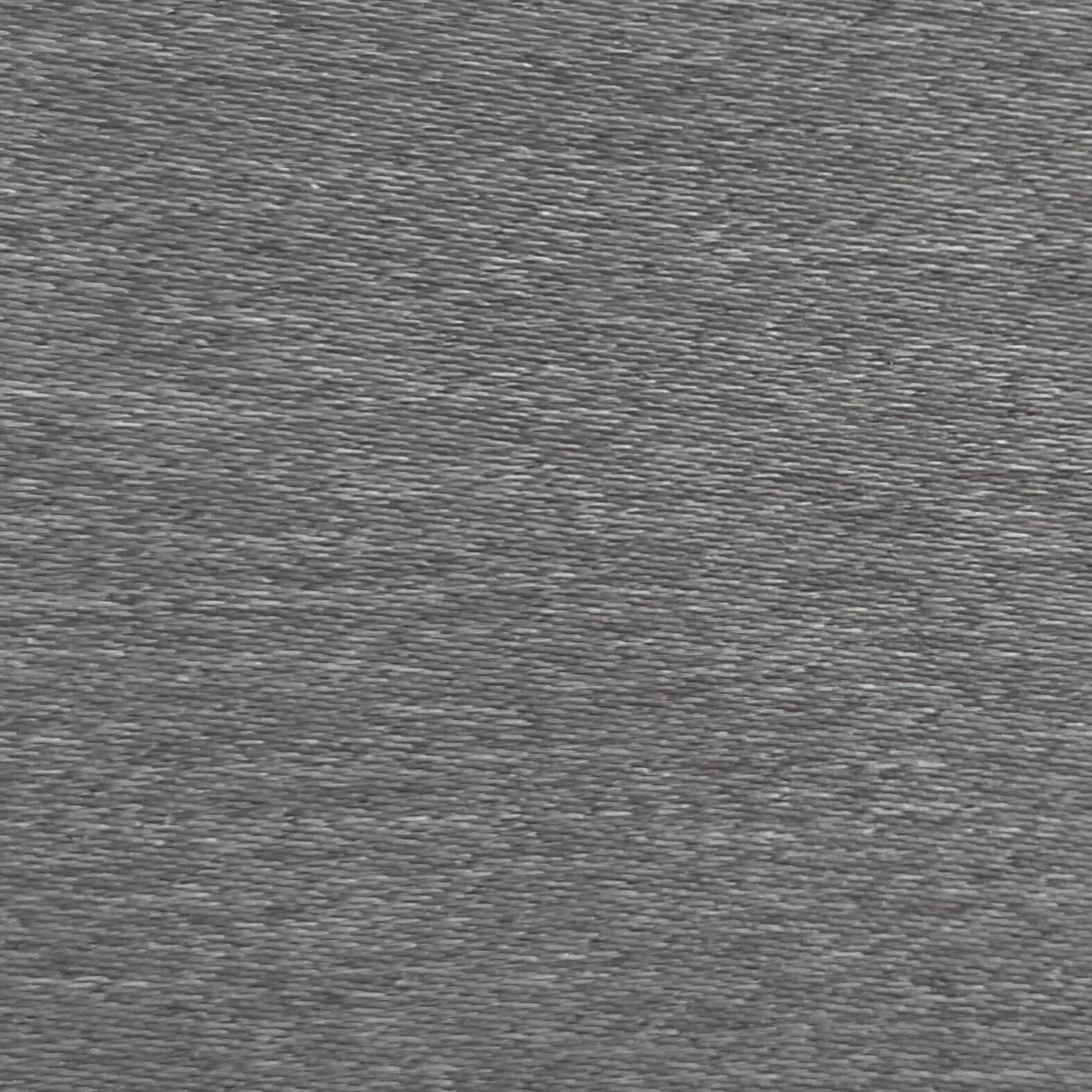

Serene Sateen Blackout
- Composition
- 80% PES + 20% Foam Coated Emulsion Acrylic Coating
- Weight
- 323g/m² ± 5% | 9.53 oz/yd² ± 5%
- Roll Width
- 2.8 m ± 5% | 110.2 in ± 5%
- Thickness
- 0.30 mm ± 2% | 0.012 in ± 2%
- Roll Length
- 32 m ± 5% | 35 yd ± 5%
- UV Blockage
- 100%
- Light Fastness
- Class 7-8
6 colors
0-007-50-00528
0-007-50-01428
0-007-50-02428
0-007-50-02528
0-007-50-02928
0-007-50-03028

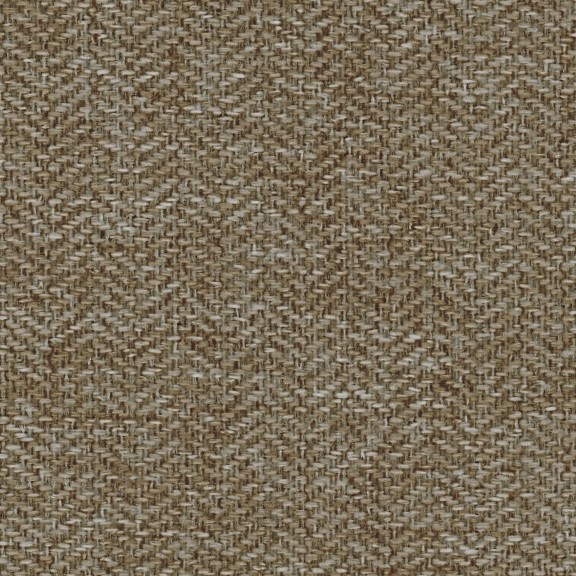

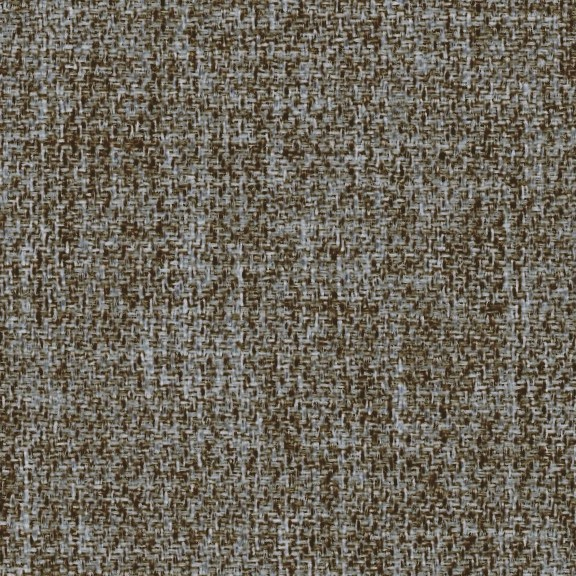

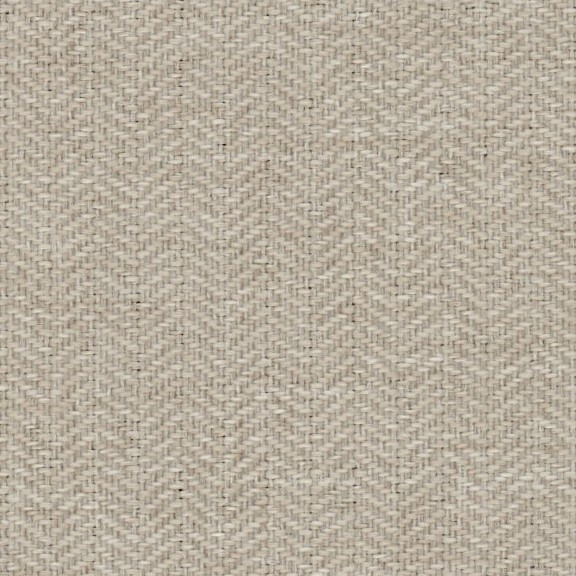

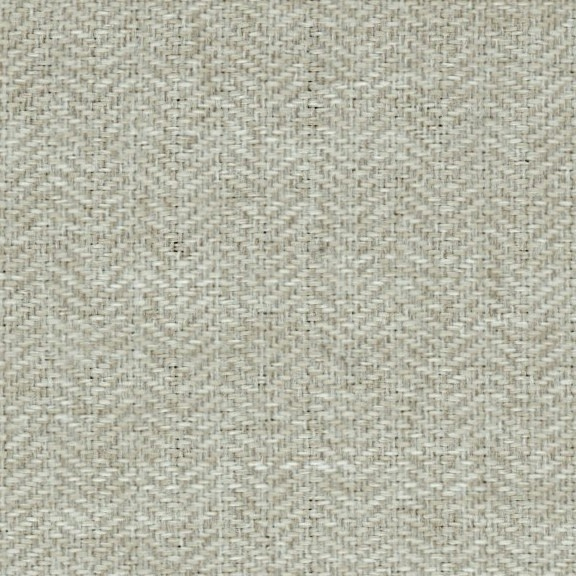

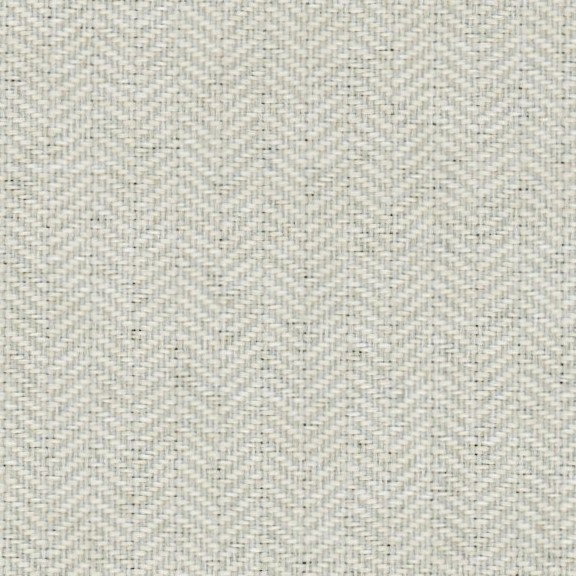

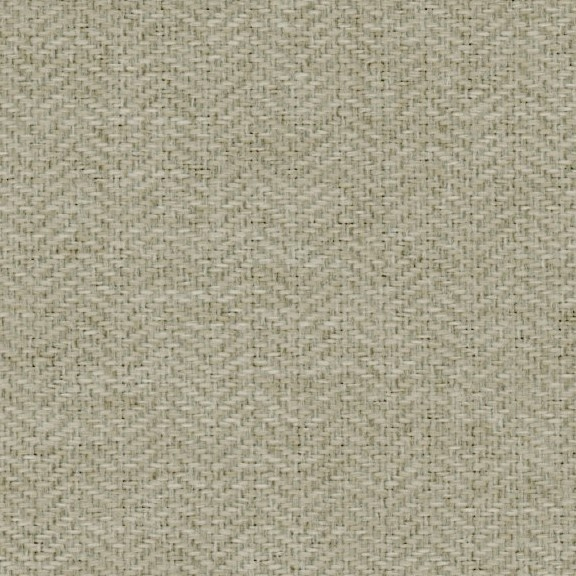

Sunshade Blackout
- Composition
- 100% PES
- Weight
- 295 g/m2 ± 5% | 8.70 oz/yd2 ± 5%
- Roll Width
- 3.0 m ± 5% | 118 in ± 5%
- Thickness
- 0.49 mm ± 5% | 0.019 in ± 5%
6 colors
0-007-26-00103
0-007-26-00203
0-007-26-00403
0-007-26-00503
0-007-26-00303
0-007-26-00903

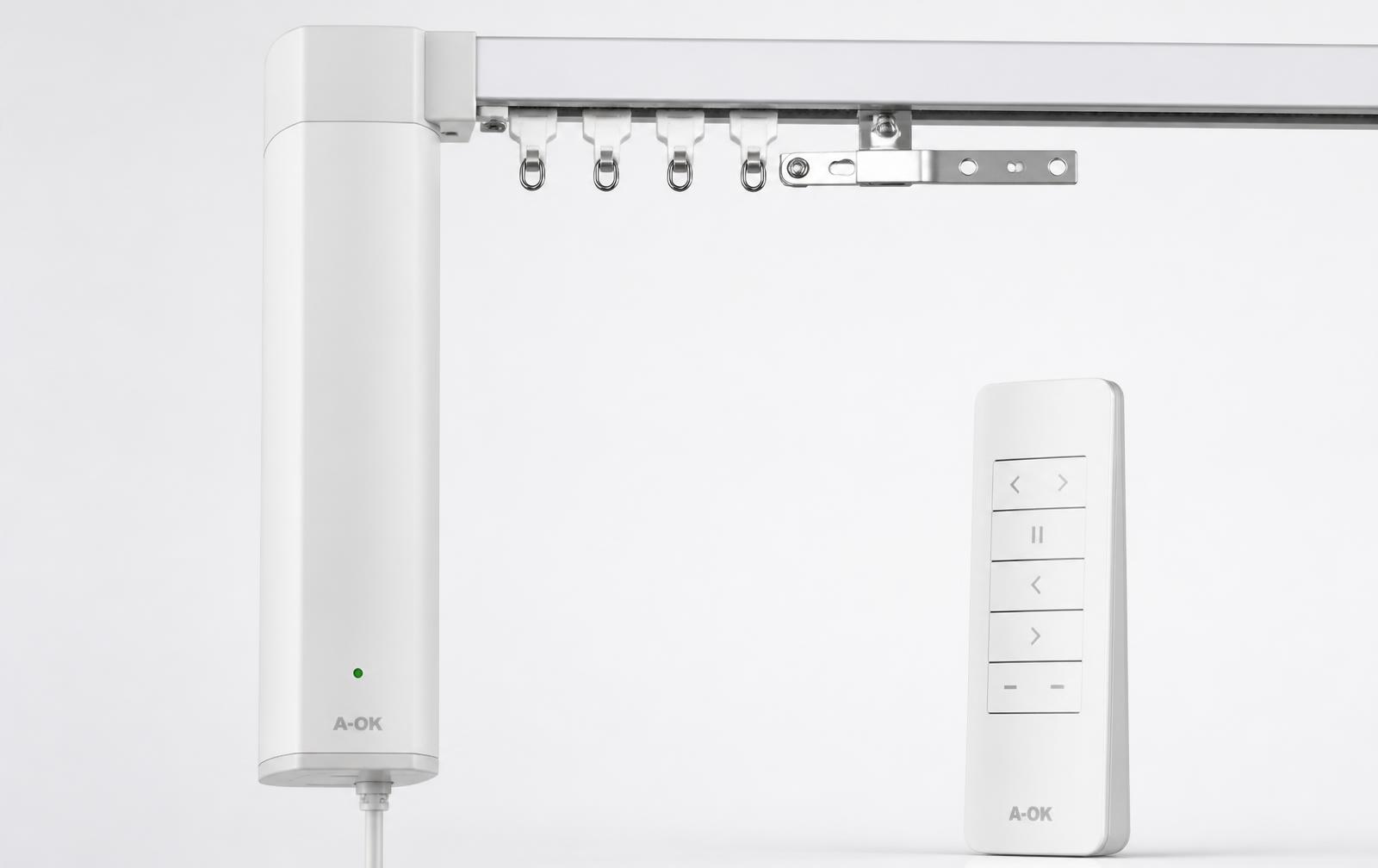

Drapery Motorization
A track that opens the whole wall with one touch.
Motorized drapery uses a belt-driven track: the motor sits at one end, hidden inside the pocket or behind the fascia, and pulls the leading carrier along the rail. It moves quietly, stops exactly where you want it and handles very wide spans that would be heavy to pull by hand.
- Rechargeable battery motors — no wiring, ideal for finished homes
- Hard-wired 110V — permanent power for tracks in daily use
- Low voltage 12V/24V — a single supply feeding several tracks
- Remote, wall keypad, app, voice and schedules
- Dual track: sheer and blackout on independent motors
- Integration with Control4, Crestron, Savant and RTI
We work with Vertilux, Somfy, AOK, Hudson and Rollease Acmeda drapery systems, and we plan the pocket, the power and the stack space before the ceiling closes whenever the project allows it.
Fabric colors shown are a reference only. Come by the showroom to feel the hand of each cloth and see how it falls before choosing.
